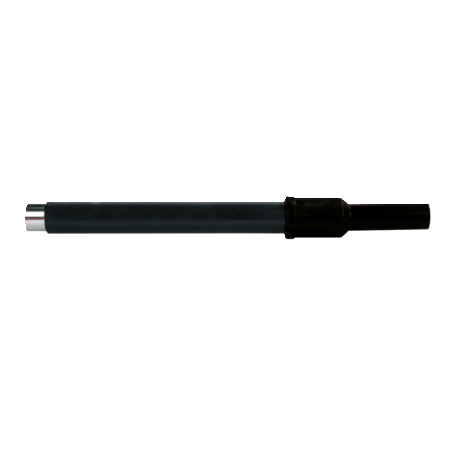

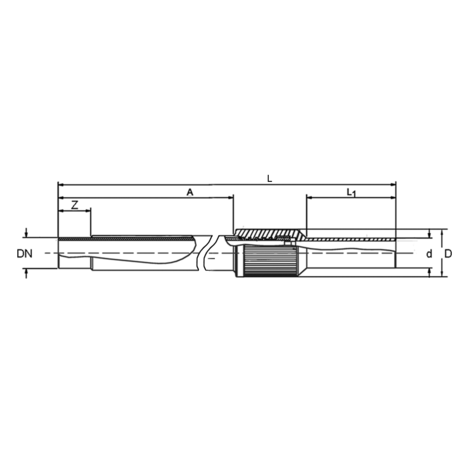

Compact transition fitting. HD-PE spigot for use with FRIALEN couplers MB or UB. Steel pipe permanently anchored in HD-PE and pre-insulated with PE coating. For use in gas systems. Optional available with steel pipe marked by restrutting (according to DVGW for MOP > 5 bar).
Compact transition fitting. HD-PE spigot for use with FRIALEN couplers MB or UB. Steel pipe permanently anchored in HD-PE and pre-insulated with PE coating. For use in gas systems. Optional available with steel pipe marked by restrutting (according to DVGW for MOP > 5 bar).
Areas of Application
The FRIALEN Transition Fittings USTRS are adapters to connect HD-PE pipes to steel pipes. The HD-PE spigot end has to be connected to a HD-PE pipe with FRIALEN Couplers. The steel spigot end of the USTRS has to be connected with a welding process to a steel pipe.
The front face of the steel pipe is according to ASTM A106 and DIN EN ISO 3183.
Assembly Instructions
The connection of the steel side happens with arc welding. Due to the heat dissipation only arc welding is permissible.
The fusion of the PE spigot end with a FRIALEN coupler takes place by using FRIALEN fusion process – leakproof and longitudinally strong.
The welding of the steel end and the fusion of the HD-PE side have to be prepared according to the general installation in-
struction (see ”Transition Fittings” in ”Assembly Instructions” for ”FRIALEN-Safety Fittings for house connections and distribution pipes”). This involves removing the oxide layer and cleaning the pipe ends.
Good reasons for using the FRIALEN-Transition Fitting USTRS:
Steel end permanently anchored in the HD-PE and will not distort
Little insulating work due to coated steel pipe
HD-PE side with spigot end for processing without holding device, designed for FRIALEN couplers
Pull-proof connection
Compact construction
Additional barcode for tracing back the fitting (Traceability-Coding)
Oxidic layer may be removed from PE spigot end using scraper tools
