BIFV
Αντάπτορες-Ρακόρ

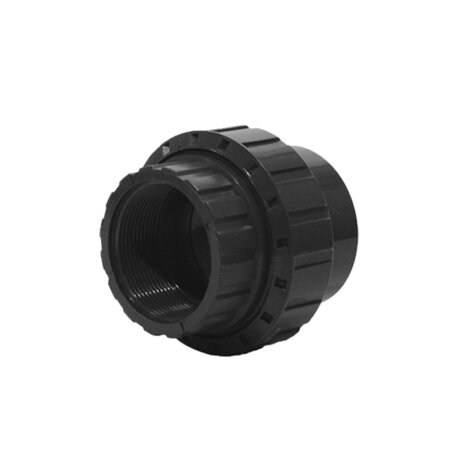

Union with solvent weld socket d and BSP threaded female end R with O-Ring in EPDM
Series of fittings designed for conveying fluids under pressure with threaded and solvent weld cold chemical jointing systems (solvent welding) using suitable solvent cement and cleanerprimer.
| Κωδικός προϊόντος | tooltipImage | d x R | R[5:1] | PN | E | H | L | L[5:1] | Z | g |
|---|---|---|---|---|---|---|---|---|---|---|
| BIFV016038E | - | 16 x 3/8" | 3/4" | 16 | 33 | 41 | 14 | 11,4 | 15,6 | 22 |
| BIFV020012E | - | 20 x 1/2" | 1" | 16 | 41 | 45 | 16 | 15 | 14 | 35 |
| BIFV025034E | - | 25 x 3/4" | 1"1/4 | 16 | 50 | 51 | 19 | 16,3 | 15,7 | 62 |
| BIFV032100E | - | 32 x 1" | 1"1/2 | 16 | 58 | 57 | 22 | 19,1 | 15,9 | 85 |
| BIFV040114E | - | 40 x 1"1/4 | 2" | 16 | 72 | 67 | 26 | 21,4 | 19,6 | 145 |
| BIFV050112E | - | 50 x 1"1/2 | 2"1/4 | 16 | 79 | 72 | 31 | 21,4 | 19,6 | 180 |
| BIFV063200E | - | 63 x 2" | 2"3/4 | 16 | 98 | 88 | 38 | 25,7 | 24 | 315 |
| BIFV075212E | - | 75 x 2"1/2 | 3"1/2 | 10 | 120 | 116 | 44 | 30,2 | 34,8 | 630 |
| BIFV090300E | - | 90 x 3" | 4" | 10 | 135 | 125 | 51 | 33,3 | 40,7 | 810 |
| BIFV110400E | - | 110 x 4" | 5" | 10 | 163 | 145 | 61 | 39,3 | 44,7 | 1350 |
