BIROV
Αντάπτορες - PVC-U/Ορείχαλκος - Ρακόρ

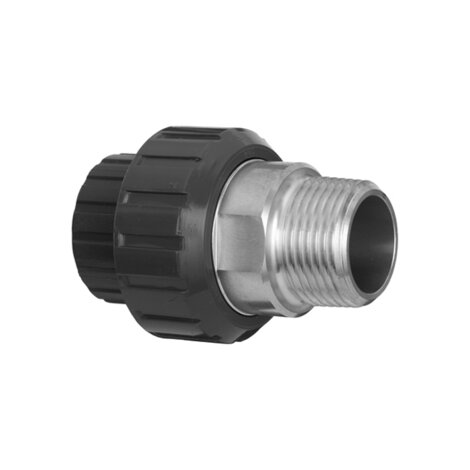

Adaptor union in PVC-U/brass with solvent weld socket d and BSP threaded brass male end R with O-Ring in EPDM
Series of fittings designed for conveying fluids under pressure with threaded and solvent weld cold chemical jointing systems (solvent welding) using suitable solvent cement and cleanerprimer.

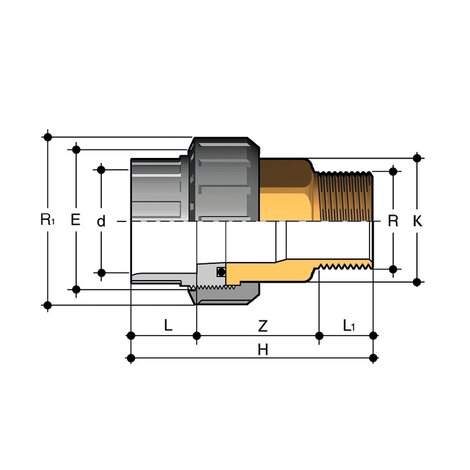

| Κωδικός προϊόντος | Σύστημα | d x R | R[5:1] | PN | E | H | K | L | L[5:1] | Z | g |
|---|---|---|---|---|---|---|---|---|---|---|---|
| BIROV016038E | Σύστημα PVC-U | 16 x 3/8" | 3/4" | 16 | 33 | 58,5 | 20 | 14 | 10,5 | 34 | 79 |
| BIROV020012E | Σύστημα PVC-U | 20 x 1/2" | 1" | 16 | 41 | 65 | 25 | 16 | 13,5 | 35,5 | 131 |
| BIROV025034E | Σύστημα PVC-U | 25 x 3/4" | 1"1/4 | 16 | 50 | 72,5 | 32 | 19 | 15 | 38,5 | 229 |
| BIROV032100E | Σύστημα PVC-U | 32 x 1" | 1"1/2 | 16 | 58 | 80 | 38 | 22 | 17,5 | 40,5 | 188 |
| BIROV040114E | Σύστημα PVC-U | 40 x 1"1/4 | 2" | 16 | 72 | 91 | 48 | 26 | 19,5 | 45,5 | 550 |
| BIROV050112E | Σύστημα PVC-U | 50 x 1"1/2 | 2"1/4 | 16 | 79 | 101 | 55 | 31 | 19,5 | 50,5 | 681 |
| BIROV063200E | Σύστημα PVC-U | 63 x 2" | 2"3/4 | 16 | 98 | 122,5 | 69 | 38 | 24 | 60,5 | 1183 |
