C100

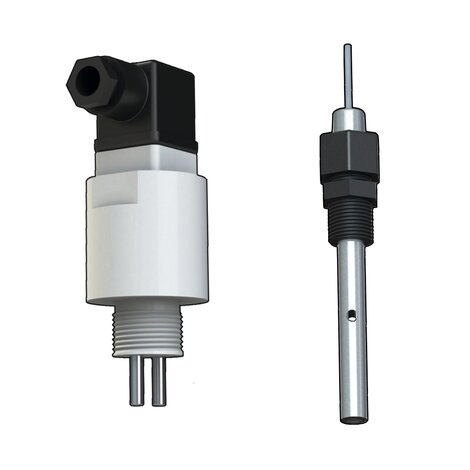

STAINLESS STEEL CONDUCTIVITY SENSOR
PP Body Conductivity Sensor with SS Electrodes with Temperature Sensor (Pt100) included
FLS conductivity sensors
with stainless steel electrodes
(C100 series) are designed
for agriculture application and
for light industrial application
obviously where sample
conditions allow a steel
using (water treatment, foods
industry and others). This type
of sensors are characterized
by a considerable ratio
performance/price. The
combination of temperature
sensor with the ATC
(Automatic Temperature
Compensation) function of the
monitor/transmitter allows to
get a precise measurement.
Moreover a wide number of
cell constants grants to choose
the best item for specific
application.
C300 serie has been designed
for ultrapure water monitoring
(certified cell constant 0,01)
and for waste water application
(cell constant 10). C300
sensors are completely made
in SS ensuring suitability for
a wide range of applications.
| Κωδικός προϊόντος | Description | Flow Rate Range | Cell Constant | Connection | Installation | Weight (gr.) |
|---|---|---|---|---|---|---|
| C100.01TC | Pt100 included | 0.1 [CS:Simbolo:μ]S/cm to 2000 [CS:Simbolo:μ]S/cm (10M[CS:Simbolo:Ω] to 500M[CS:Simbolo:Ω] *cm) | 0,1 | 4 poles connector | ¾” male BSP (parallel threaded) | 350 |
| C100.02TC | Pt100 included | 0.2 [CS:Simbolo:μ]S/cm to 4000 [CS:Simbolo:μ]S/cm | 0,2 | 4 poles connector | ¾” male BSP (parallel threaded) | 350 |
| C100.1TC | Pt100 included | 1 [CS:Simbolo:μ]S/cm to 20000 [CS:Simbolo:μ]S/cm | 1 | 4 poles connector | ¾” male BSP (parallel threaded) | 350 |
- APPLICATIONS βʼ Agriculture and fertilizing system βʼ Water treatment βʼ Foods industry βʼ Aquaculture βʼ Ultrapure water application: production and use MAIN FEATURES βʼ Stainless steel measuring surfaces βʼ Considerable ratio performance/price βʼ Temperature sensor included βʼ Wide range of cell constant βʼ Rugged sensor body in PP (C100) βʼ Sensor in SS completely (C300) βʼ C300.001TCCK with certified cell constant
