CLV
Εξαρτήματα σύμφωνα με Αγγλικά Πρότυπα-Τάπα

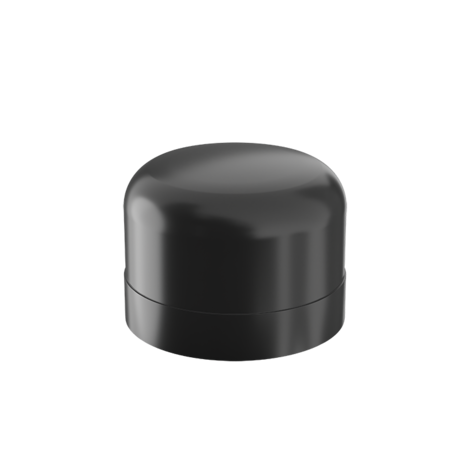

End cap with solvent weld socket
Series of fittings for pipes conveying fluids under pressure with solvent weld and threaded joints according to British Standard.

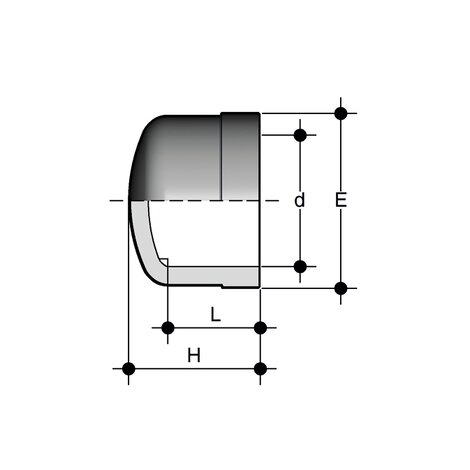

| Κωδικός προϊόντος | tooltipImage | d | PN | E | L | Z | g | Class |
|---|---|---|---|---|---|---|---|---|
| CLV012 | - | 1/2" | 15 | 27 | 16,5 | 2 | 13 | E |
| CLV034 | - | 3/4" | 15 | 33 | 19,5 | 2 | 15 | E |
| CLV100 | - | 1" | 15 | 41 | 22,5 | 2 | 36 | E |
| CLV114 | - | 1"1/4 | 12 | 50 | 26 | 3 | 58 | E |
| CLV112 | - | 1"1/2 | 15 | 61 | 31 | 3 | 118 | E |
| CLV200 | - | 2" | 15 | 76 | 38 | 3 | 206 | E |
| CIV075 | - | 2"1/2 | 12 | 90 | 44 | 4 | 250 | E |
| CLV300 | - | 3" | 15 | 108 | 50,5 | 5,5 | 420 | E |
| CLV400 | - | 4" | 15 | 131 | 63 | 5 | 680 | E |
