Δεδομένα για pH-ORP.200

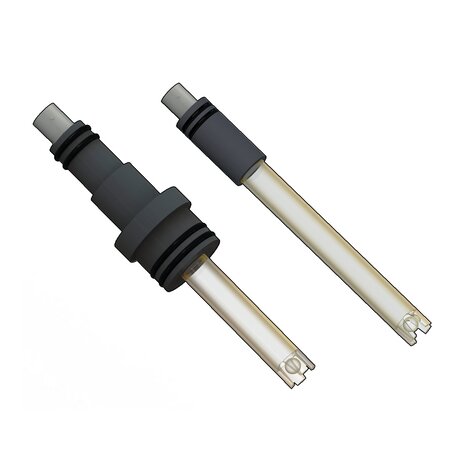

EPOXY BODY BULB Ηλεκτρόδιο
Bulb ORP Electrodes with epoxy body
This FLS line of electrodes
has been designed to
provide a cost effective multipurpose
solution for in line or
submersion measurement of
pH and ORP in a wide range of
applications.
Single and double junction
versions are available as well
as models with or without quick
disconnect top caps. Moreover
for automatic temperature
compensation function (ATC)
a pH option with temperature
sensor integrated is available.
These epoxy body electrodes
can stand several applications
thanks to the high chemical
resistance of the material. A
simple and reusable gland
can be used for economic
electrode in-line mounting
while a Β½β or ΒΎβ coupler with
a pipe extension is enough
for submersion mounting. A
special version is dedicated to
installation on FLS T fitting as
well as to FLS clamp saddle
adding just a nut.
| Κωδικός προϊόντος | tooltipImage | Corpo | Materiale/tipo di giunzione | Soluzione di riferimento | Superficie di rilevamento | O-ring | Collegamento | Max pressione di esercizio a temperatura d'esercizio |
|---|---|---|---|---|---|---|---|---|
| ORP200C | - | resina epossidica | nylon/S.J. | KCl 3,5 M | platino | - | 5 m (16,5 piedi) | 7 bar a 25 °C /$1 bar a 65 °C$(100 psi a 77 °F/ 14,5 psi a 149 °F) |
| ORP222CD | - | resina epossidica | nylon/D.J. | KCl 3,5 M / KNO3 sat. | platino | silicone | Twist-Lock (BNC) | 7 bar a 25 °C /$1 bar a 65 °C$(100 psi a 77 °F/ 14,5 psi a 149 °F) |
| ORP223CD | - | resina epossidica | nylon/D.J. | KCl 3,5 M / KNO3 sat. | platino | silicone | Twist-Lock (BNC) | 7 bar a 25 °C /$1 bar a 65 °C$(100 psi a 77 °F/ 14,5 psi a 149 °F) |
| PH200C | - | resina epossidica | nylon/S.J. | KCl 3,5 M | membrana in vetro di pH | - | 5 m (16,5 piedi) | 7 bar a 25 °C /$1 bar a 65 °C$(100 psi a 77 °F/ 14,5 psi a 149 °F) |
| PH222CD | - | resina epossidica | nylon/D.J. | KCl 3,5 M / KNO3 sat. | membrana in vetro di pH | silicone | Twist-Lock (BNC) | 7 bar a 25 °C /$1 bar a 65 °C$(100 psi a 77 °F/ 14,5 psi a 149 °F) |
| PH222CDTC | - | resina epossidica | nylon/D.J. | KCl 3,5 M / KNO3 sat. | membrana in vetro di pH | - | 5 m (16,5 piedi) | 7 bar a 25 °C /$1 bar a 65 °C$(100 psi a 77 °F/ 14,5 psi a 149 °F) |
| PH223CD | - | resina epossidica | nylon/D.J. | KCl 3,5 M / KNO3 sat. | membrana in vetro di pH | silicone | Twist-Lock (BNC) | 7 bar a 25 °C /$1 bar a 65 °C$(100 psi a 77 °F/ 14,5 psi a 149 °F) |
- APPLICATIONS βʼ Water treatment βʼ Neutralization systems βʼ Water quality monitoring βʼ Swimming Pools and spas βʼ Aquaculture βʼ Agriculture and fertilizing systems βʼ Process control MAIN FEATURES βʼ Epoxy body βʼ Single or double junction technology βʼ Large gel reference volume βʼ Easy and quick installation system βʼ Outline cable or BNC connection βʼ Version with temperature sensor combined βʼ Special versions on request βʼ Low cost fittings
