DIC
Εξαρτήματα Κολλητά-Συστολές

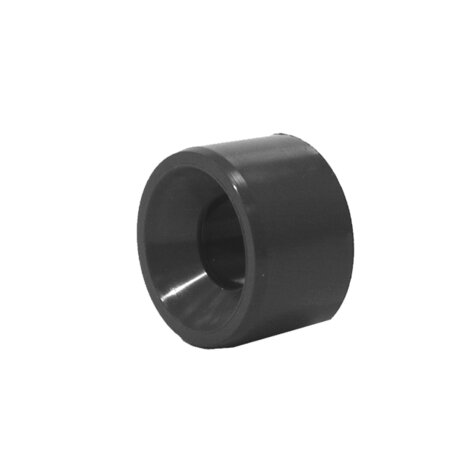

Reducing bush with solvent weld spigot (d) and solvent weld socket (d1 reduced) (fig.A)
Series of fittings designed for conveying fluids under pressure with a cold chemical weld jointing system (solvent welding) using a suitable solvent cement (TemperGLUE WELD-ON) and cleaner-primer.
| Κωδικός προϊόντος | tooltipImage | d x d[5:1] | PN | L | Z | g |
|---|---|---|---|---|---|---|
| DIC020016 | - | 20 x 16 | 16 | 16 | 2 | 3 |
| DIC025020 | - | 25 x 20 | 16 | 19 | 3 | 6 |
| DIC032020 | - | 32 x 20 | 16 | 22 | 6 | 16 |
| DIC032025 | - | 32 x 25 | 16 | 22 | 3 | 11 |
| DIC040032 | - | 40 x 32 | 16 | 26 | 4 | 18 |
| DIC050040 | - | 50 x 40 | 16 | 31 | 5 | 35 |
| DIC063050 | - | 63 x 50 | 16 | 38 | 7 | 70 |
| DIC075063 | - | 75 x 63 | 16 | 44 | 6 | 92 |
| DIC090075 | - | 90 x 75 | 16 | 51 | 7 | 159 |
| DIC110090 | - | 110 x 90 | 16 | 61 | 9 | 297 |
