F6.61.XX
Hot Tap Ηλεκτρομαγνητικοί Αισθητήρες Ροής Εισερχόμενου Στελέχους
Hot Tap Magmeter Flow Sensor

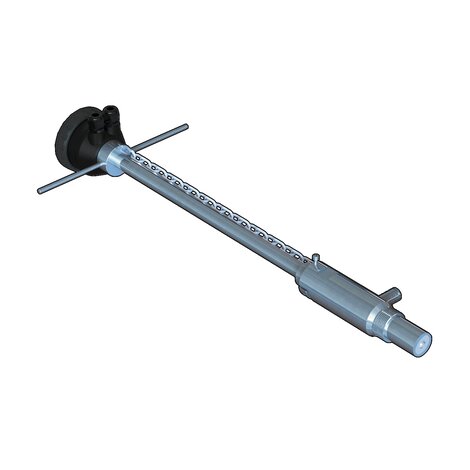

FLS F6.61 Hot Tap
Insertion Magmeter Flow
Sensor is a flowmeter without
moving mechanical parts
which can be applied for the
measurement of dirty liquids
so long as they are conductive
and homogeneous. The sensor
can provide three different
options: frequency output to
be connected to FLS flow
monitors, 4-20 mA output for
long distance transmission
and PLC connection and the
new volume pulse output freely
settable. FLS F6.61 Insertion
Magmeter is provided with an
USB interface and a dedicated
software (freely downloadable
from FLS web site) which
allows to easily set by a PC
all parameters according
to specific installation
requirements.
The sensor can be assembled
in a wide dynamic range of
pressurized pipe sizes from
DN50 (2β) to DN900 (36β)
using a standard clamp saddle
and an isolation ball valve
| Κωδικός προϊόντος | tooltipImage | Version | Power supply | Lenght | Main Wetted Materials | Enclosure | Flow Rate Range | Weight (gr.) |
|---|---|---|---|---|---|---|---|---|
| F6.61.01 | - | HOT TAP INSERTION INSTALLATION | 12 - 24 VCC | 615 mm | 316L SS $ PVDF $ AISI 316L | IP65 | Da 0,05 a 8 m/s* | 6000 |
- APPLICATIONS βʼ Water distribution βʼ Leak Detection or Monitoring βʼ Raw water intake βʼ Water and waste water treatment βʼ Ground water remediation βʼ Irrigation MAIN FEATURES βʼ Adjustable sensor position βʼ Hot-Tap installation βʼ Operating parameters settable by PC interface βʼ Pressure intake βʼ Standard 1 ΒΌβ BSP process connection βʼ No moving parts, no wear, maintenance free βʼ Flow Rate Range settable from 0.05 to 8 m/s (0.15 to 25 ft/s) βʼ Accurate measurement of dirty liquids βʼ 4-20 mA, frequency or volume pulse outputs βʼ Bi-directional flow measurement selectable
