M9.02.PX - M9.02.WX
Πίνακας Ελέγχου Ροής
Flow Monitor and Transmitter

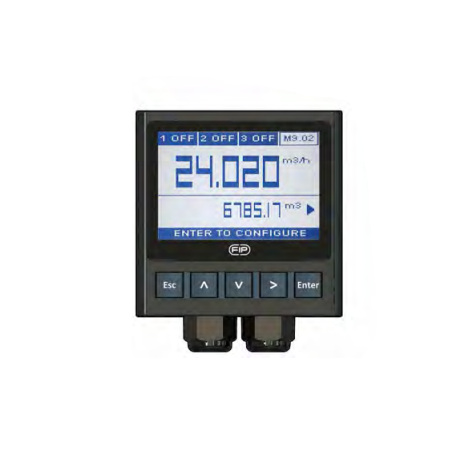

FLS M9.02 is a
powerful flow monitor designed
to convert the frequency signal
of FLS flow sensors into a
flow rate. M9.02 is equipped
with a wide full graphic display
4β which shows measured
values clearly and a lot of other
useful information. Moreover,
due to a multicolor display
plus a powerful backlight,
measurement status can
be determined easily from
afar also. A tutorial software
guarantees a mistake-proof
and fast set up of every
parameters. Calibration can
be performed just fixing
installation features or using a
reference value through a new
βin-line calibrationβ. A 4-20mA
output is available to remote
flow rate to a external device.
A proper combination of digital
outputs allows customized
setups for any process to
be controlled. The USB port
on the rear part allows the
upgrade of software offering
a wide range of customization
services both standard and on
request
| Κωδικός προϊόντος | tooltipImage | Mounting | Power supply | Wire power Technology | Sensor Input | Output | Weight (gr.) |
|---|---|---|---|---|---|---|---|
| M9.02.P1 | - | Panel | 12 - 24 VCC | 3/4 wire | Flow (Frequency) | 1* (4-20 mA) $ 2* (S.S.R.) $ 1* (mech. relay) | 500 |
| M9.02.W1 | - | Wall | 12 - 24 VCC | 3/4 wire | Flow (Frequency) | 1* (4-20 mA) $ 2* (S.S.R.) $ 1* (mech. relay) | 550 |
| M9.02.W2 | - | Wall | 110 - 230 VCA | 3/4 wire | Flow (Frequency) | 1* (4-20 mA) $ 2* (S.S.R.) $ 1* (mech. relay) | 650 |
- APPLICATIONS βʼ Water treatment systems βʼ Industrial waste water treatment and recovery βʼ Water distribution βʼ Filtration systems βʼ Swimming pools & SPA βʼ Irrigation & Fertigation βʼ Leak detection βʼ Cooling water monitoring βʼ Processing and manufacturing industry βʼ Chemical production MAIN FEATURES βʼ Wide full graphic display βʼ Multicolor backlight βʼ Help on board βʼ Installation flexibility βʼ Fast, intuitive and mistake-proof calibration software βʼ Mechanical relay for external device control βʼ Solid State Relays for programmable alarms βʼ Multilanguage menu βʼ USB port for software upgrading
