Φλάντζες - ISO-DIN SERIES

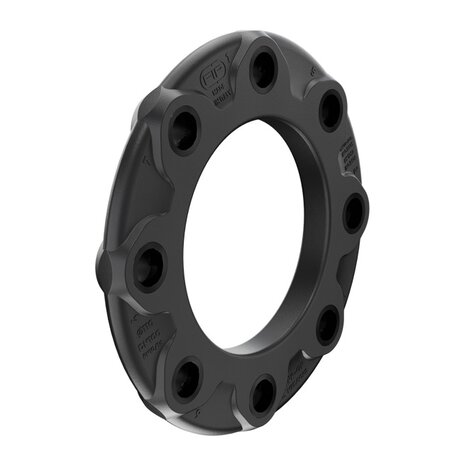

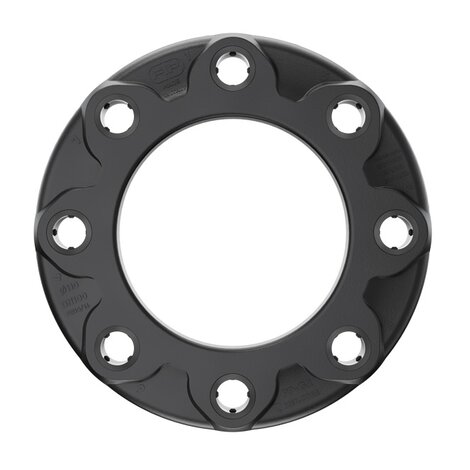

Steel core backing ring, PP/FRP coated, according to EN/ISO/DIN for stub QRNF. Drilling: PN 10/16
Series of fittings designed for conveying fluids under pressure with a hot weld connection system (socket welding).

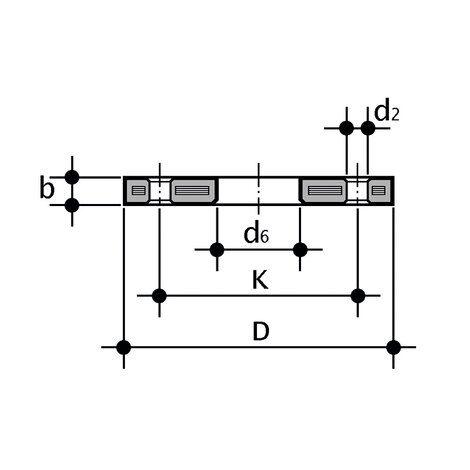

| Κωδικός προϊόντος | d | DN | *PMA (bar) | b | D | d2 | d6 | K | M | **(Nm) | n | g |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| ODT020 | 20 | 15 | 16 | 12 | 95 | 14 | 28 | 65 | M12 | 15 | 4 | 290 |
| ODT025 | 25 | 20 | 16 | 14 | 105 | 14 | 34 | 75 | M12 | 15 | 4 | 410 |
| ODT032 | 32 | 25 | 16 | 16 | 115 | 14 | 42 | 85 | M12 | 15 | 4 | 610 |
| ODT040 | 40 | 32 | 16 | 16 | 140 | 18 | 51 | 100 | M16 | 20 | 4 | 880 |
| ODT050 | 50 | 40 | 16 | 16 | 150 | 18 | 62 | 110 | M16 | 30 | 4 | 810 |
| ODT063 | 63 | 50 | 16 | 19 | 165 | 18 | 78 | 125 | M16 | 35 | 4 | 940 |
| ODT075 | 75 | 65 | 16 | 19 | 188 | 18 | 92 | 145 | M16 | 40 | 4 | 1210 |
| ODT090 | **90 | 80 | 16 | 21 | 200 | 18 | 109 | 160 | M16 | 40 | 8 | 1480 |
| ODT110 | - | - | - | - | - | - | - | - | - | - | - | - |
| ODT125 | ***125 | 100 | 16 | 20 | 220 | 18 | 135 | 180 | M16 | 45 | 8 | 1570 |
| ODT140 | - | - | - | - | - | - | - | - | - | - | - | - |
| ODT160 | - | - | - | - | - | - | - | - | - | - | - | - |
| ODT180 | - | - | - | - | - | - | - | - | - | - | - | - |
| ODT200 | - | - | - | - | - | - | - | - | - | - | - | - |
| ODT225 | - | - | - | - | - | - | - | - | - | - | - | - |
| ODT250 | - | - | - | - | - | - | - | - | - | - | - | - |
| ODT280 | - | - | - | - | - | - | - | - | - | - | - | - |
| ODT315 | - | - | - | - | - | - | - | - | - | - | - | - |
