Power Quick/CE
DUAL BLOCKΒ SERIES Βάνες Σφαιρικές DN 10Γ·50
The valve can be equipped with electric actuators, using the PP-GR module reproducing the drilling pattern foreseen by ISO 5211
MAGNUM 3G is completed with a range of tools and accessories to help the installer
Χαρακτηριστικά:
- Upper part (PVC-U)
- Bottom part (PVC-U)
- Bolts (zinc plated steel)
- Nuts (zinc plated steel )
- Gasket (NBR)
- Reinforcing ring (Stainless steel)

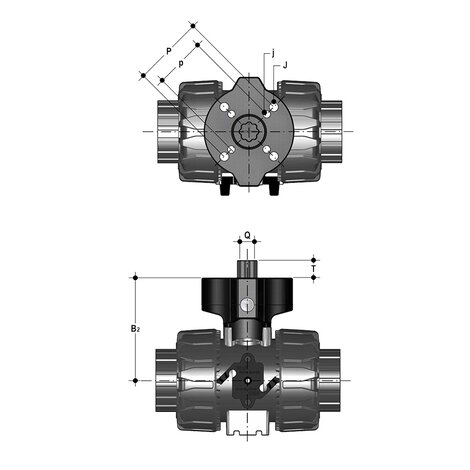

| Κωδικός προϊόντος | tooltipImage | d | DN | B[5:2] | Q | T | p x j | P X J | ISO | Square | to be used with: |
|---|---|---|---|---|---|---|---|---|---|---|---|
| PQCE020 | - | 20 | 15 | 58 | 14 | 16 | F03 x 5,5 | F04 x 5,5 | F03-04 | 14 | VKD-TKD |
| PQCE025 | - | 25 | 20 | 69 | 14 | 16 | *F03 x 5,5 | F05 x 6,5 | F03-05 | 14 | VKD-TKD |
| PQCE025F04 | - | 25 | 20 | - | - | - | - | - | F04 | 14 | VKD-TKD |
| PQCE032 | - | 32 | 25 | 74 | 14 | 16 | *F03 x 5,5 | F05 x 6,5 | F03-05 | 14 | VKD-TKD |
| PQCE032F04 | - | 32 | 25 | - | - | - | - | - | F04 | 14 | VKD-TKD |
| PQCE040 | - | 40 | 32 | 91 | 14 | 16 | F05 x 6,5 | F07 x 8,5 | F05-07 | 14 | VKD-TKD |
| PQCE050 | - | 50 | 40 | 97 | 14 | 16 | F05 x 6,5 | F07 x 8,5 | F05-07 | 14 | VKD-TKD |
| PQCE063 | - | 63 | 50 | 114 | 14 | 16 | F05 x 6,5 | F07 x 8,5 | F05-07 | 14 | VKD-TKD |
- The reinforcing bush are used to reinforce the pipe PE100 (SDR11) e PE-X, to elong the lifetime of the pipeline and to reduce the collapse risk of the pipe in disadvantages conditions. They use is particurarly suggested using PE-X pipes. The two tightening keys (d.16-63 and d.75-110) are important tools to install the MAGNUM 3G fittings
