RIV

Εξαρτήματα Κολλητά- Συστολές

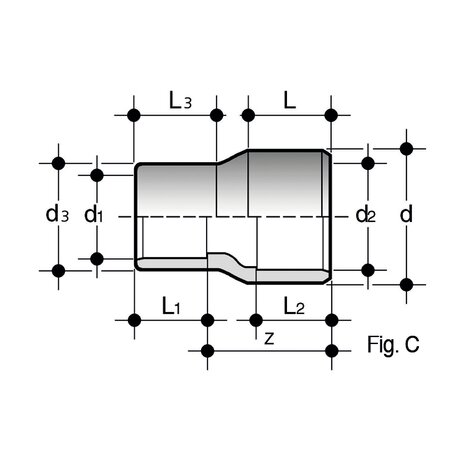

Reducer: solvent weld spigot (d) or solvent weld socket (d2), solvent weld socket (d1 reduced) or solvent weld spigot (d3 reduced) (Fig.C)
Series of fittings designed for conveying fluids under pressure with a cold chemical weld jointing system (solvent welding) using a suitable solvent cement and cleaner-primer.
Επιστροφή Τεχνικό Φυλλάδιο
Immagine del raccordo per incollaggio - riduzioni RIV
Disegno tecnico del raccordo per incollaggio - riduzioni RIV fig. C
Immagine del raccordo per incollaggio - riduzioni RIV
Disegno tecnico del raccordo per incollaggio - riduzioni RIV fig. C
Κωδικός προϊόντος Σύστημα product.detail.attribute. d x d[5:2] x d[5:3] x d[5:1] PN E L L[5:1] L[5:2] L[5:3]v Z g
RIV090075050040 Σύστημα PVC-U I 90 x 75 x 50 x 40 16 - 51 26 44 31 74 180
RIV090075063050 Σύστημα PVC-U IF 90 x 75 x 63 x 50 16 - 51 31 44 38 74 200
RIV090075075063 Σύστημα PVC-U F 90 x 75 x 75 x 63 16 - 51 38 44 44 74 260
RIV090075090075 Σύστημα PVC-U - 90 x 75 x 90 x 75 16 - 51 44 44 51 74 325
