Σφιγκτήρας ευθυγράμμισης d 63 – d 180
Σφιγκτήρας ευθυγράμμισης με ρύθμιση γωνίας (45 ° / 90 °) και δύο στοιχεία σύσφιξης για ηλεκτροσυνδέσεις με θερμαντήρες αντιστάσεις, ηλεκτροσυστολές και 45 ° και 90 ° ηλεκτρογωνίες διαμέτρων d 63, d 90, d 125 και d 180. Τα κελύφη συστολών μπορούν να εισαχθούν για διάφορα μεγέθη.
Alignment clamp with angle adjustment (45°/90°) and two clamping elements for heating coil fusion couplers, reducers, and 45° and 90° elbows d 63, d 90, d 125, and d 180. Reduction shells can be inserted for various sizes. Delivered in a practical carrier bag.
Alignment clamp can be expanded with additional clamping element modules for use as fourfold alignment clamp for d 63, d 90, d 125, and d 180. This needs two additional clamping elements.
T-piece extension kit for alignment clamp. Variant with one clamping element. Additional clamping elements can be attached for a twofold alignment clamp on the branching pipe.
Reduction shell set for d 110 and d 160. One reduction shell set is needed for each clamping element.

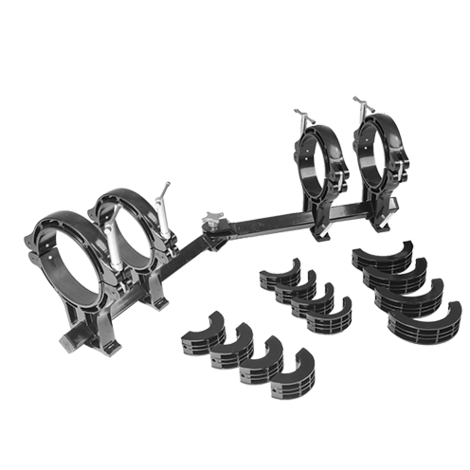

(The figure is exemplary)
| Κωδικός προϊόντος | Article description | Diameter Area | Weight kg |
|---|---|---|---|
| 613021 | Alignment clamp with two clamping elements | d 63, d 90, d 125 и d 180 | 17,000 |
| 613022 | Additional clamping element | d 63, d 90, d 125 и d 180 | 5,500 |
| 613023 | Reduction shell set d 110/d 160 | d 110 и d 160 | 3,000 |
| 613024 | T-piece extension kit | d 63, d 90, d 125 и d 180 | 11,000 |
