SLV
Εξαρτήματα σύμφωνα με Αγγλικά Πρότυπα με Μούφα

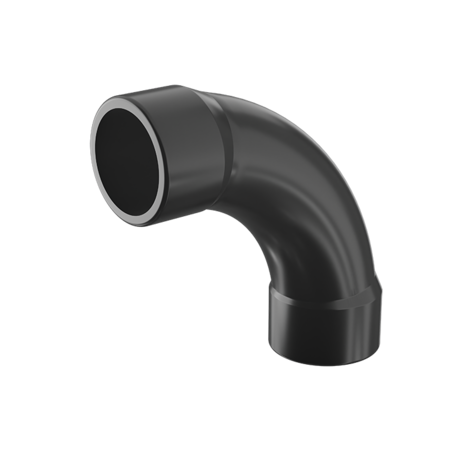

90Β° long radius bend (R=2D) with solvent weld sockets
Series of fittings for pipes conveying fluids under pressure with solvent weld and threaded joints according to British Standard.
| Κωδικός προϊόντος | tooltipImage | d | PN | E | L | Z | g | Class |
|---|---|---|---|---|---|---|---|---|
| 1RCU420000 | - | 1/2" | 15 | 28 | 16 | 40 | 45 | E |
| 1RCU425000 | - | 3/4" | 15 | 34 | 19 | 50 | 75 | E |
| 1RCU432000 | - | 1" | 15 | 41 | 22 | 64 | 120 | E |
| 1RCU440000 | - | 1"1/4 | 15 | 51 | 26 | 80 | 205 | E |
| 1RCU450000 | - | 1"1/2 | 15 | 65 | 31 | 100 | 310 | E |
| 1RCU463000 | - | 2" | 15 | 77 | 38 | 126 | 510 | E |
| SIV075 | - | 2"1/2 | 15 | 94 | 44 | 150 | 1000 | E |
