SZIV
Ποδοβαλβίδα

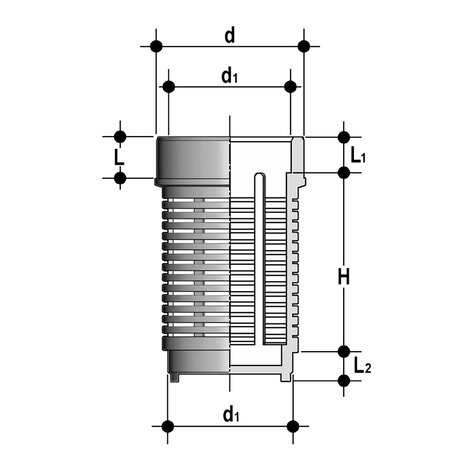

Suction strainer with male and female ends for solvent welding to foot valve VZ
MAGNUM 3G is completed with a range of tools and accessories to help the installer
Χαρακτηριστικά:
- Upper part (PVC-U)
- Bottom part (PVC-U)
- Bolts (zinc plated steel)
- Nuts (zinc plated steel )
- Gasket (NBR)
- Reinforcing ring (Stainless steel)
| Κωδικός προϊόντος | tooltipImage | d | d[5:1] | DN |
|---|---|---|---|---|
| SZIV016 | - | 16 | 16 | 10 |
| SZIV020 | - | 20 | 20 | 15 |
| SZIV025 | - | 25 | 25 | 20 |
| SZIV032 | - | 32 | 32 | 25 |
| SZIV040 | - | 40 | 40 | 32 |
| SZIV050 | - | 50 | 50 | 40 |
| SZIV063 | - | 63 | 63 | 50 |
- The reinforcing bush are used to reinforce the pipe PE100 (SDR11) e PE-X, to elong the lifetime of the pipeline and to reduce the collapse risk of the pipe in disadvantages conditions. They use is particurarly suggested using PE-X pipes. The two tightening keys (d.16-63 and d.75-110) are important tools to install the MAGNUM 3G fittings
