TIV
Εξαρτήματα Κολλητά με Μούφα

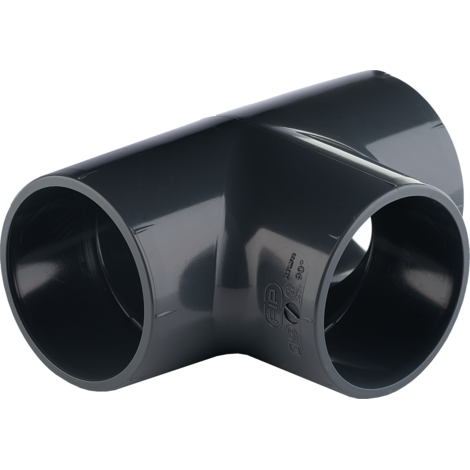

90Β° Tee with solvent weld sockets
Series of fittings designed for conveying fluids under pressure with a cold chemical weld jointing system (solvent welding) using a suitable solvent cement and cleaner-primer.

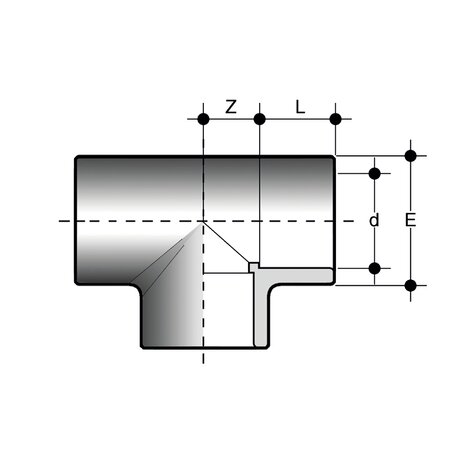

| Κωδικός προϊόντος | tooltipImage | d | PN | E | L | Z | g | product.detail.attribute. |
|---|---|---|---|---|---|---|---|---|
| TIV012 | - | 12 | 16 | 17 | 12 | 8 | 6 | - |
| TIV016 | - | 16 | 16 | 22 | 14 | 9 | 15 | FH |
| TIV020 | - | 20 | 16 | 27 | 16 | 11 | 25 | IFH |
| TIV025 | - | 25 | 16 | 33 | 19 | 14 | 40 | IFH |
| TIV032 | - | 32 | 16 | 40 | 22 | 18 | 65 | IFH |
| TIV040 | - | 40 | 16 | 49 | 26 | 22 | 114 | IFH |
| TIV050 | - | 50 | 16 | 61 | 31 | 27 | 185 | IFH |
| TIV063 | - | 63 | 16 | 76 | 38 | 34 | 380 | IFH |
| TIV075 | - | 75 | 16 | 88 | 44 | 39 | 470 | IF |
| TIV090 | - | 90 | 16 | 104 | 52 | 46 | 780 | IF |
| TIV110 | - | 110 | 16 | 133 | 61 | 61 | 1760 | IF |
| TIV125 | - | 125 | 16 | 151 | 69 | 64 | 2430 | IF |
| TIV140 | - | 140 | 16 | 174 | 76 | 77 | 4150 | IF |
| TIV160 | - | 160 | 16 | 183 | 87 | 82 | 3870 | IF |
| TIV180 | - | 180 | 16 | 215 | 96 | 94 | 6180 | - |
| TIV200 | - | 200 | *16 | 228 | 106 | 101 | 6180 | - |
| TIV225 | - | 225 | *16 | 258 | 119 | 114 | 12680 | - |
| TIV250 | - | 250 | 10 | 286 | 131 | 128 | 13250 | - |
| TIV280 | - | 280 | 10 | 319 | 146 | 144 | 17840 | - |
| TIV315 | - | 315 | 10 | 360 | 164 | 162 | 25300 | - |
