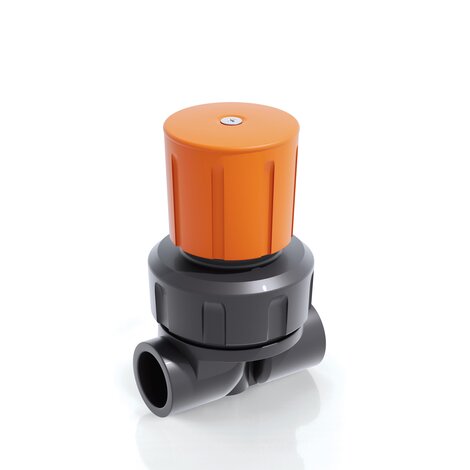

VMIV - Mini Βάνα Διαφράγματος
Mini-diaphragm valve with female ends for solvent welding, metric series
The VM mini-valve is used to shut-off and regulate fluid flow and is characterised by its reduced size.

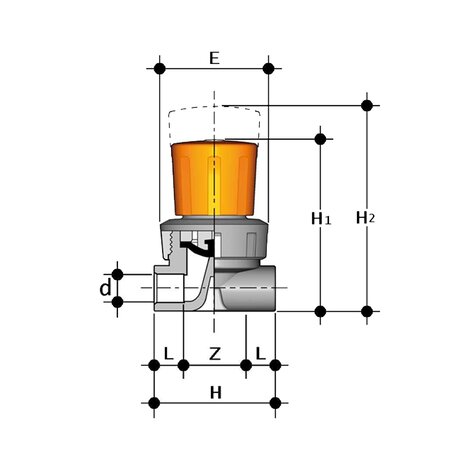

| Κωδικός προϊόντος | Σύστημα | d | DN | PN | E | H | H[5:1] | H[5:2] | L | Z | g |
|---|---|---|---|---|---|---|---|---|---|---|---|
| VMIV012E | Σύστημα PVC-U | 12 | 8 | 10 | 43 | 48 | 72 | 81 | 12 | 24 | 70 |
- Connection system for solvent weld and threaded joints
- Extremely compact dimensions
- Can be installed in any position
- Valve material compatibility (PVC-U) and elastomer seal elements (EPDM), with water, drinking water and other food substances as per current regulations
- Specifically designed for laboratory applications or for sampling purposes
