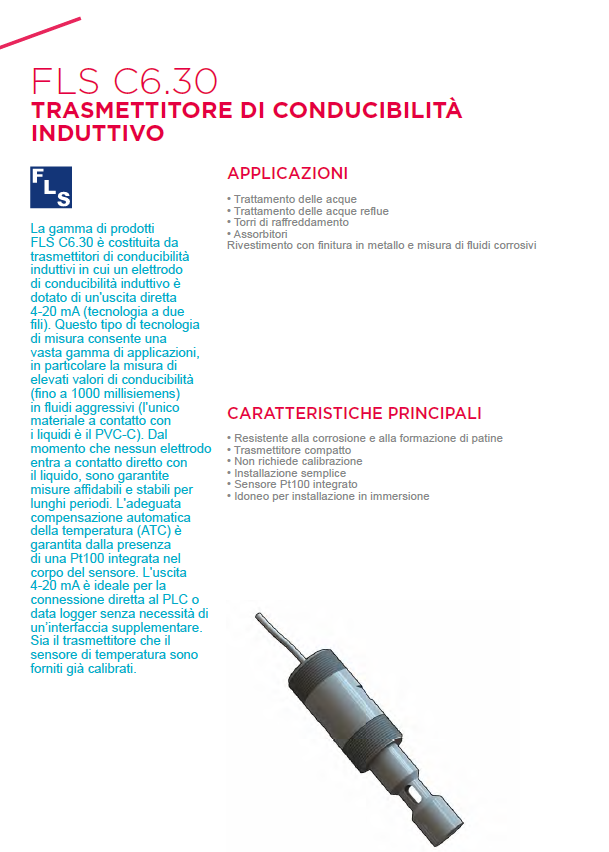

C6.30 - Inductive conductivity transmitter

C-PVC Inductive Conductivity Transmitter with Temperature Sensor (Pt100) included.

FLS C6.30 is a family of inductive conductivity transmitters which are made by a 4-20mA output device (two wire technology) integrated onto an inductive conductivity sensor. This type of measurement technology allows a broad range of applications especially to measure high values of conductivity (till 1000 millisiemens) in aggressive fluids (C-PVC is the only wetted material). As no electrodes are directly in contact with liquid, a reliable and stable measurement is guaranteed for a long operating time. A proper automatic temperature compensation (ATC) is granted by a Pt100 integrated into instrument body. The isolated 4-20mA output is perfect for direct connections to PLCs or data loggers without any extra interfaces. Transmitter as well as temperature sensor are supplied already calibrated.
Go back Data sheet
C6.30 - Inductive conductivity transmitter
Reference system Category family series Description Operative Range Connection Installation
C6.30.01 Automation system FLS Measurement and control Instrumentation ph / ORP / Conductivity Electrodes Potentiometric and Inductive Conductivity Sensors Pt100 included 0-10 mS/cm 3 m 1 1/2" NPT male threaded
C6.30.02 Automation system FLS Measurement and control Instrumentation ph / ORP / Conductivity Electrodes Potentiometric and Inductive Conductivity Sensors Pt100 included 0-100 mS/cm 3 m 1 1/2" NPT male threaded
C6.30.03 Automation system FLS Measurement and control Instrumentation ph / ORP / Conductivity Electrodes Potentiometric and Inductive Conductivity Sensors Pt100 included 0-1000 mS/cm 3 m 1 1/2" NPT male threaded

APPLICATIONS:

  • Water treatment
  • Waste water treatment
  • Cooling towers
  • Scrubber systems
  • Metal finishing Coating and corrosion fluid measurement

MAIN FEATURES:

  • Corrosion & coating resistant
  •  Compact transmitter
  • No calibration required
  • Easy installation
  • Pt100 sensor integrated
  • Suitable for submersible installation
