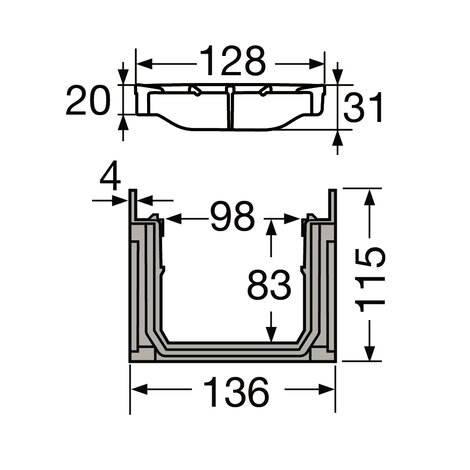

Channel with composite grate - B125 - L100 int/130 ext Connecto

Screw-in grates

The Connecto channel is designed to be implemented in pedestrian areas, pavements, private parking areas and multi-storey car parks to effectively collect run-off water. To be in harmony with the gutter body, a design and aesthetic grate is offered to fit perfectly with the environment.The Connecto low channel is designed to be implemented in areas used by pedestrians and cyclists: surfaces, areas or green spaces, in order to effectively collect runoff water. To be in harmony with the channel body, a wide choice of design and aesthetic grates is offered to fit perfectly with the environment. Possibility of a specially designed grid to make the channel invisible : ref GDR10AFR

Go back

Reference	Name	codepackaging	gencodPackaging	typetariff33	unitGencod	gencodOuterPackaging	grossWeigthWithOuterPackaging	csvObjectNature	codingNature	identifier	systemMarkValue	lesPlusPerformance	lesPlusInstallation	specialtyValue	destination	brandCode	Brand	brandLabel	genericColors	colors	gridColors	materials	standards	Application	assemblyTypes	inputType	outputTypeValue
CAN10BN	Channel with composite grate - B125 - L100 int/130 ext Connecto	P	3309033772104	B	3309033626803	3309033772104	0.001	Article plat	ARTPLAT	41014	CONCTO	Channel designed for joinery with a reduced threshold limiting the projection to 2 cm and imposing a 6 cm water clearance, A wide range of grids for integration in all environments, An excellent resistance to frost, de-icing salts and thermal shocks, An anti-corrosion performance, absence of porosity, A perfect watertightness over time, Possibility of a grid specially designed to make the channel invisible: ref GDR10AFR	A male/female assembly for simplicity, speed and a very neat result, Modular and light, facilitating the implementation and handling, The pre-cuts at the outlet allow an unclogging with a simple hammer, The interlocking system ensures straightness during the implementation	BÂTIMENT	865	GAMM-CONNECTO	60259	CONNECTO	BLACK	BLACK	GREY_FONCE	Polypropylene	NF EN 1433	Hydraulic channels	To be nested	Lateral-Vertical	Lateral-Vertical
