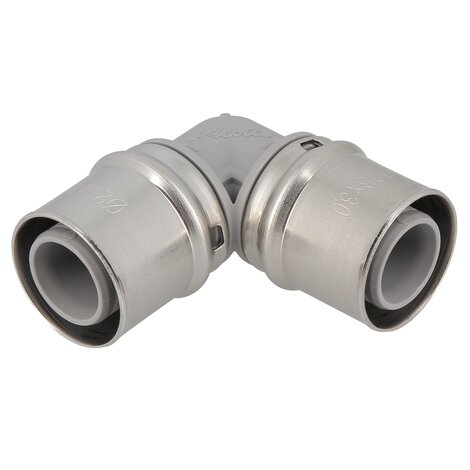

"CRIMPING ELBOW 90 D.26 PPSU DIFFUS"
This range of FLUXO-P synthetic material fittings is intended to be the highest quality and most efficient alternative to brass multilayer fittings.
The combination of high flow rate (Γ of passage) and saving of installation time to meet both the requirements of your prescribing customers and those of installers for the same applications.
Equal crimped elbow connection (2 pipes of equivalent diameters)
Application classes (identical to the brass range):
- Class 2: Domestic hot and cold water supply,
- Class 4: Low temperature radiators, underfloor heating,
- Class 5: High temperature radiators,
- Class "Chilled water"
| Reference | Name | titleDiameter1Code | diameter1Title | titleDiameter1Label | typetariff33 | unitGencod | csvObjectNature | codingNature | identifier | lesPlusPerformance | lesPlusInstallation | specialtyValue | colors | assemblyTypes |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| FLC26PN | "CRIMPING ELBOW 90 D.26 PPSU DIFFUS" | DIAM-DIAMETRE | 70917 | ø | B | 3309039149306 | Article | ART | 103842 | Seamless sealing, Optimized flow diameter (equivalent to the FLUXO brass range) - High performance flow, Made in France (development, design, production) | Organized leakage allowing to avoid forgetting crimping when pressurizing the network (diam.16-32), Optimized size to facilitate the installation and optimize the aesthetics (diam.16-32), Saving of time of installation: Without joint, it is not necessary any more to deburr the tube, Maximum safety: Without joint: no damage of the joint during the insertion of the tube... | SANITAIRE | Grey | To be crimped |
