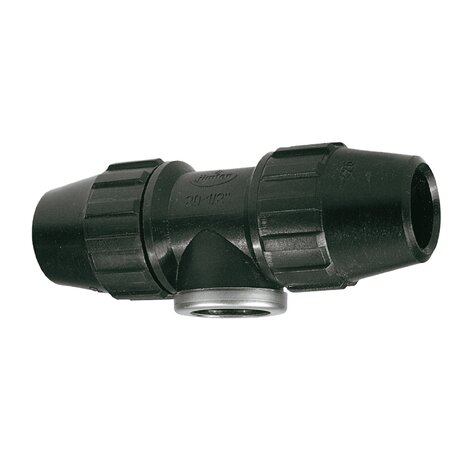

Female threaded t branch without metal reinforcement
Threaded female tee without metal reinforcement
| Reference | tooltipImage | characteristics | Box units | measurement | A | B | C | E | F | Size | r |
|---|---|---|---|---|---|---|---|---|---|---|---|
| 055007 | - | N AENOR | 15 | 50-1 1/2" | 225.4 | 88 | 51.4 | 27 | 90 | 50-11/2” | 1 1/2” |
| 055008 | - | N AENOR | 15 | 63-2" | 261 | 110 | 64.3 | 32.3 | 105 | 63-2” | 2” |
| 055023 | - | - | 100 | 20-1/2" | 120.8 | 41 | 20.8 | 12 | 48 | 20-1/2” | 1/2” |
| 055024 | - | N AENOR | 100 | 25-3/4" | 135.5 | 47.8 | 25.6 | 15 | 55 | 25-3/4” | 3/4” |
| 055025 | - | N AENOR | 50 | 32-1" | 161.4 | 58 | 33 | 16 | 64.3 | 32-3/4” | 1” |
| 055026 | - | N AENOR | 50 | 40-1 1/4" | 192.9 | 69.5 | 41.4 | 21.7 | 76.1 | 40-11/4” | 1 1/4” |
| 055027 | - | - | 5 | 75-2 1/2" | 325.5 | 121 | 79.3 | 36.1 | 129.7 | 75-21/2” | 2 1/2” |
| 055028 | - | - | 5 | 90-3" | 362.8 | 146.5 | 91.5 | 35 | 140.5 | 90-3” | 3” |
| 055219 | - | N AENOR | 50 | 25-1/2" | 135.5 | 47.8 | 25.6 | 12 | 55 | 25-1/2” | 1/2” |
| 055220 | - | - | 2 | 110-4" | 432 | 178 | 116.6 | 41.5 | 155 | 110-4” | 4” |
| 055244 | - | N AENOR | 50 | 32-3/4" | 161.4 | 58 | 33 | 16 | 65 | 32-1” | 3/4” |
| 755023 | - | - | 25 | 20-1/2 | - | - | - | - | - | - | - |
| 755024 | - | - | 25 | 25-3/4 | - | - | - | - | - | - | - |
| 755025 | - | - | 15 | 32-1 | - | - | - | - | - | - | - |
| 755219 | - | - | 25 | 25-1/2" | - | - | - | - | - | - | - |
| 755244 | - | - | 15 | 32-3/4 | - | - | - | - | - | - | - |
