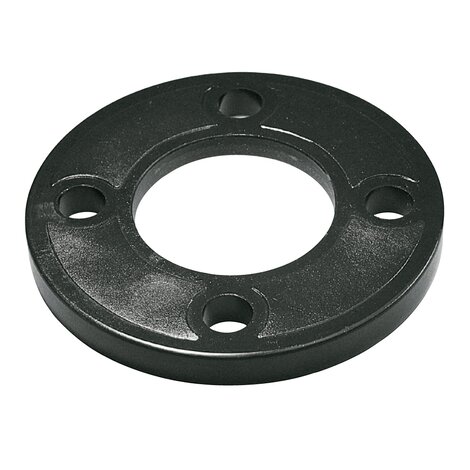

Flange

Flanges. sizes according to: UNE 19 153, ISO 2084, UNI 7442, 8063.
Go back Data sheet
Flange
Reference tooltipImage characteristics Box units measurement
058001 - ØInt.65 10 50 (DN.40)
058002 - ØInt.78 10 63 (DN.50)
058003 - ØInt.92 5 75 (DN.65)
058004 - ØInt.110 5 90 (DN.80)
058017 - ØInt.133 8 110 (DN 100)
