FROF - Clapet valve DN 32:400

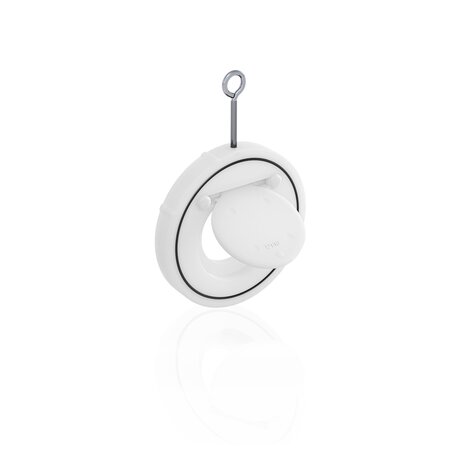

Clapet valve in PVDF without spring, ISO-DIN series.
The FR type swing check valve is designed to be directly installed between stubs and flanges according to ISO/DIN or ANSI 150 standards.
EPDM
| Reference | system | Category | family | series | d | DN | PN | ISO/DIN | Z | Di | A | B | C | g |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| FROF040E | PVDF system | Manual valves | Auxiliary valves | FR DN 40÷400 | 40 | 32 | 10 | 85 | 15 | 18 | 59 | 22 | 25 | 160 |
| FROF050E | PVDF system | Manual valves | Auxiliary valves | FR DN 40÷400 | 50 | 40 | 10 | 95 | 16 | 22 | 72 | 25 | 28 | 210 |
| FROF063E | PVDF system | Manual valves | Auxiliary valves | FR DN 40÷400 | 63 | 50 | 10 | 109 | 18 | 32 | 86 | 37 | 29 | 340 |
| FROF075E | PVDF system | Manual valves | Auxiliary valves | FR DN 40÷400 | 75 | 65 | 10 | 129 | 20 | 40 | 105 | 50 | 31 | 430 |
| FROF090E | PVDF system | Manual valves | Auxiliary valves | FR DN 40÷400 | 90 | 80 | 10 | 144 | 20 | 54 | 119 | 61 | 32 | 520 |
| FROF110E | PVDF system | Manual valves | Auxiliary valves | FR DN 40÷400 | 110 | 100 | 10 | 164 | 23 | 70 | 146 | 77 | 31 | 720 |
| FROF140E | PVDF system | Manual valves | Auxiliary valves | FR DN 40÷400 | 140 | 125 | 10 | 195 | 23 | 92 | 173 | 94 | 35 | 980 |
| FROF160E | PVDF system | Manual valves | Auxiliary valves | FR DN 40÷400 | 160 | 150 | 8 | 220 | 26 | 105 | 197 | 100 | 40 | 1440 |
| FROF225E | PVDF system | Manual valves | Auxiliary valves | FR DN 40÷400 | 225 | 200 | 8 | 275 | 34 | 154 | 255 | 152 | 38 | 2730 |
| FROF280E | PVDF system | Manual valves | Auxiliary valves | FR DN 40÷400 | 280 | 250 | 5 | 330 | 40 | 192 | 312 | 180 | 41 | 4560 |
| FROF315E | PVDF system | Manual valves | Auxiliary valves | FR DN 40÷400 | 315 | 300 | 5 | 380 | 45 | 227 | 363 | 215 | 41 | 6950 |
| FROF355E | PVDF system | Manual valves | Auxiliary valves | FR DN 40÷400 | 350 | 350 | 5 | 440 | 49 | 266 | 416 | 245 | 44 | 10131 |
| FROF400E | PVDF system | Manual valves | Auxiliary valves | FR DN 40÷400 | 400 | 400 | 5 | 491 | 65 | 310 | 467 | 285 | 50 | 16736 |
FKM
| Reference | system | Category | family | series | d | DN | PN | ISO/DIN | Z | Di | A | B | C | g |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| FROF040F | PVDF system | Manual valves | Auxiliary valves | FR DN 40÷400 | 40 | 32 | 10 | 85 | 15 | 18 | 59 | 22 | 25 | 160 |
| FROF050F | PVDF system | Manual valves | Auxiliary valves | FR DN 40÷400 | 50 | 40 | 10 | 95 | 16 | 22 | 72 | 25 | 28 | 210 |
| FROF063F | PVDF system | Manual valves | Auxiliary valves | FR DN 40÷400 | 63 | 50 | 10 | 109 | 18 | 32 | 86 | 37 | 29 | 340 |
| FROF075F | PVDF system | Manual valves | Auxiliary valves | FR DN 40÷400 | 75 | 65 | 10 | 129 | 20 | 40 | 105 | 50 | 31 | 430 |
| FROF090F | PVDF system | Manual valves | Auxiliary valves | FR DN 40÷400 | 90 | 80 | 10 | 144 | 20 | 54 | 119 | 61 | 32 | 520 |
| FROF110F | PVDF system | Manual valves | Auxiliary valves | FR DN 40÷400 | 110 | 100 | 10 | 164 | 23 | 70 | 146 | 77 | 31 | 720 |
| FROF140F | PVDF system | Manual valves | Auxiliary valves | FR DN 40÷400 | 140 | 125 | 10 | 195 | 23 | 92 | 173 | 94 | 35 | 980 |
| FROF160F | PVDF system | Manual valves | Auxiliary valves | FR DN 40÷400 | 160 | 150 | 8 | 220 | 26 | 105 | 197 | 100 | 40 | 1440 |
| FROF225F | PVDF system | Manual valves | Auxiliary valves | FR DN 40÷400 | 225 | 200 | 8 | 275 | 34 | 154 | 255 | 152 | 38 | 2730 |
| FROF280F | PVDF system | Manual valves | Auxiliary valves | FR DN 40÷400 | 280 | 250 | 5 | 330 | 40 | 192 | 312 | 180 | 41 | 4560 |
| FROF315F | PVDF system | Manual valves | Auxiliary valves | FR DN 40÷400 | 315 | 300 | 5 | 380 | 45 | 227 | 363 | 215 | 41 | 6950 |
| FROF355F | PVDF system | Manual valves | Auxiliary valves | FR DN 40÷400 | 350 | 350 | 5 | 440 | 49 | 266 | 416 | 245 | 44 | 10131 |
| FROF400F | PVDF system | Manual valves | Auxiliary valves | FR DN 40÷400 | 400 | 400 | 5 | 491 | 65 | 310 | 467 | 285 | 50 | 16736 |
PTFE
| Reference | system | Category | family | series | d | DN | PN | ISO/DIN | Z | Di | A | B | C | g |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| FROF040P | PVDF system | Manual valves | Auxiliary valves | FR DN 40÷400 | 40 | 32 | 10 | 85 | 15 | 18 | 59 | 22 | 25 | 160 |
| FROF050P | PVDF system | Manual valves | Auxiliary valves | FR DN 40÷400 | 50 | 40 | 10 | 95 | 16 | 22 | 72 | 25 | 28 | 210 |
| FROF063P | PVDF system | Manual valves | Auxiliary valves | FR DN 40÷400 | 63 | 50 | 10 | 109 | 18 | 32 | 86 | 37 | 29 | 340 |
| FROF075P | PVDF system | Manual valves | Auxiliary valves | FR DN 40÷400 | 75 | 65 | 10 | 129 | 20 | 40 | 105 | 50 | 31 | 430 |
| FROF090P | PVDF system | Manual valves | Auxiliary valves | FR DN 40÷400 | 90 | 80 | 10 | 144 | 20 | 54 | 119 | 61 | 32 | 520 |
| FROF110P | PVDF system | Manual valves | Auxiliary valves | FR DN 40÷400 | 110 | 100 | 10 | 164 | 23 | 70 | 146 | 77 | 31 | 720 |
| FROF140P | PVDF system | Manual valves | Auxiliary valves | FR DN 40÷400 | 140 | 125 | 10 | 195 | 23 | 92 | 173 | 94 | 35 | 980 |
| FROF160P | PVDF system | Manual valves | Auxiliary valves | FR DN 40÷400 | 160 | 150 | 8 | 220 | 26 | 105 | 197 | 100 | 40 | 1440 |
| FROF225P | PVDF system | Manual valves | Auxiliary valves | FR DN 40÷400 | 225 | 200 | 8 | 275 | 34 | 154 | 255 | 152 | 38 | 2730 |
| FROF280P | PVDF system | Manual valves | Auxiliary valves | FR DN 40÷400 | 280 | 250 | 5 | 330 | 40 | 192 | 312 | 180 | 41 | 4560 |
| FROF315P | PVDF system | Manual valves | Auxiliary valves | FR DN 40÷400 | 315 | 300 | 5 | 380 | 45 | 227 | 363 | 215 | 41 | 6950 |
| FROF355P | PVDF system | Manual valves | Auxiliary valves | FR DN 40÷400 | 350 | 350 | 5 | 440 | 49 | 266 | 416 | 245 | 44 | 10131 |
| FROF400P | PVDF system | Manual valves | Auxiliary valves | FR DN 40÷400 | 400 | 400 | 5 | 491 | 65 | 310 | 467 | 285 | 50 | 16736 |
- Installed with FIP QPV (d50 - d160) stubs and QRV stubs using flat gasket QHV/Y (d225 - d315), on PVC piping class PN10 or lower with type ODV flanges
- Metal support for easy and precise centring of the valve during installation
- Can be installed in either a vertical or horizontal position
- Sealing system with O-ring for optimum sealing and installation without flat gaskets
