GLV

Fittings according to british standard - equal socket.

90° elbow with solvent weld sockets.

Series of fittings for pipes conveying fluids under pressure with solvent weld and threaded joints according to British Standard.
Go back Data sheet

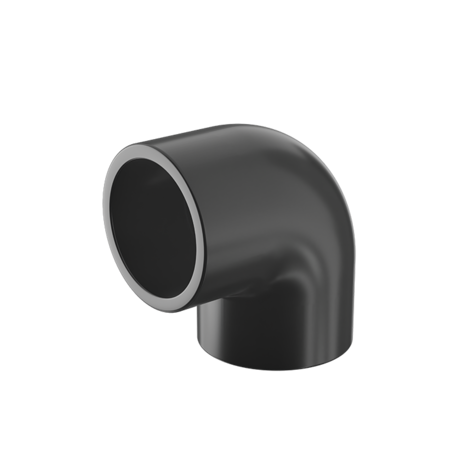

Immagine del gomito a 90° estremità a bicchiere per incollaggio GLV

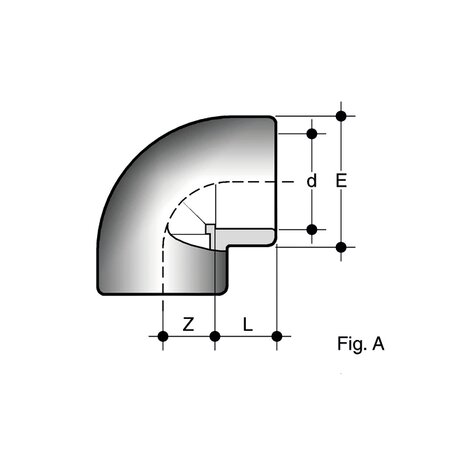

Disegno tecnico del raccordo per incollaggio GIV (Fig. A)
Immagine del gomito a 90° estremità a bicchiere per incollaggio GLV
Disegno tecnico del raccordo per incollaggio GIV (Fig. A)
Reference system Category family d PN Class E L Z g
GLV012 PVC-U system Pressure Fittings BS Fittings 1/2" 15 E 27 16,5 10,5 15
GLV600 PVC-U system Pressure Fittings BS Fittings 6" 12 D 194,5 90 90 3480
GLV400 PVC-U system Pressure Fittings BS Fittings 4" 15 E 131 63 58 972
GLV300 PVC-U system Pressure Fittings BS Fittings 3" 15 E 108 51 48 768
GIV075 PVC-U system Pressure Fittings BS Fittings 2"1/2 15 E 90 44 40,5 427
GLV200 PVC-U system Pressure Fittings BS Fittings 2" 15 E 76 38 33,5 340
GLV112 PVC-U system Pressure Fittings BS Fittings 1"1/2 15 E 61 31 27 160
GLV114 PVC-U system Pressure Fittings BS Fittings 1"1/4 12 D 54 27 21,5 110
GLV100 PVC-U system Pressure Fittings BS Fittings 1" 15 E 41 22,5 17 45
GLV034 PVC-U system Pressure Fittings BS Fittings 3/4" 15 E 33 19,5 13,5 30
GLV800 PVC-U system Pressure Fittings BS Fittings 8" 12 D 257 115,5 169,5 8850
