ILFV

Fittings according to british standard - BS-BSP adaptors.

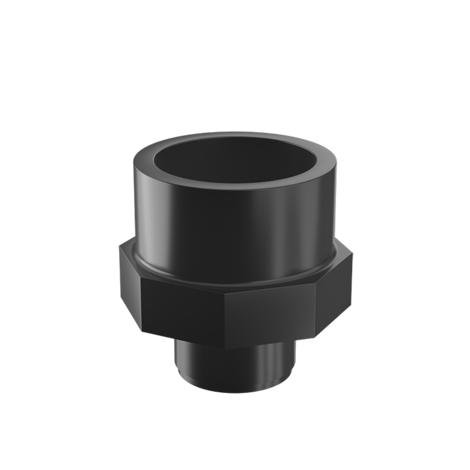

Female/male adaptor with solvent weld socket d and BSP threaded male end R.

Series of fittings for pipes conveying fluids under pressure with solvent weld and threaded joints according to British Standard.

Go back Data sheet

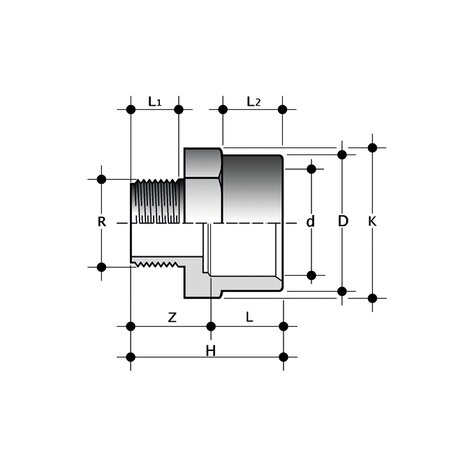

Reference	tooltipImage	system	Category	family	d x R	PN	H	K	L	L₁	Z	g	Class
ILFV012	-	PVC-U system	Pressure Fittings	BS Fittings	1/2" x 1/2"	15	37,5	30	16,5	15	21	20	E
ILFV034	-	PVC-U system	Pressure Fittings	BS Fittings	3/4" x 3/4"	15	42	36	19,5	16,3	22,5	22	E
ILFV100	-	PVC-U system	Pressure Fittings	BS Fittings	1" x 1"	15	47,5	46	22,5	19,1	25	25	E
ILFV112	-	PVC-U system	Pressure Fittings	BS Fittings	1"1/2 x 1"1/2	15	62	65	31	21,4	31	98	E
ILFV114	-	PVC-U system	Pressure Fittings	BS Fittings	1"1/4 x 1"1/4	15	56,5	55	27	21,4	29,5	65	E
ILFV200	-	PVC-U system	Pressure Fittings	BS Fittings	2" x 2"	15	73	80	38	25,7	35	160	E

2.8 MB, PDF

BS FITTINGS PVC-U Technical Catalogue
