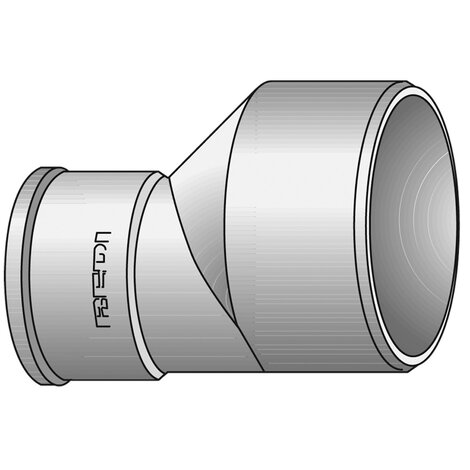

Invert reducer M/F
PVC-U Soil & Waste System
- EN 1329 Solvent Welded PVC-U Fittings
- B s2 d0 Fire Reaction Euroclass
- Color: RAL 7037 Grey

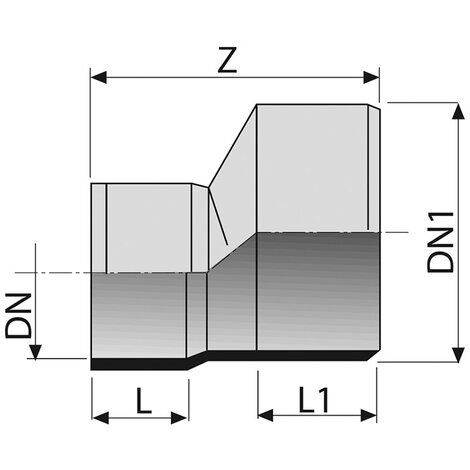

| Reference | tooltipImage | DN1 (mm) | Z (mm) | L (mm) | L1 (mm) | DN (mm) | Version |
|---|---|---|---|---|---|---|---|
| 091050M | - | 50 | 75 | 23 | 32 | 32 | - |
| 091250M | - | 50 | 71 | 27 | 32 | 40 | - |
| 0900602 | - | 63 | 116 | - | 50 | 40 | - |
| 090480M | - | 100 | 142 | 36 | 58 | 40 | upon request |
| 090260M | - | 63 | 114 | 40 | 50 | 50 | - |
| 051070M | - | 75 | 115 | 40 | 48 | 50 | - |
| 090080M | - | 80 | 128 | 40 | 53 | 50 | - |
| 090100M | - | 100 | 148 | 40 | 62 | 50 | - |
| 051110M | - | 110 | 173 | 40 | 70 | 50 | - |
| 0902802 | - | 80 | 122 | 43 | 53 | 63 | - |
| 0903002 | - | 100 | 142 | 43 | 61 | 63 | upon request |
| 0513102 | - | 110 | - | - | - | 75 | - |
| 090500M | - | 100 | 135 | 46 | 61 | 80 | - |
| 090120M | - | 125 | 134 | 57 | 61 | 100 | - |
| E511002 | - | 140 | - | - | - | 100 | - |
| E511302 | - | 160 | - | - | - | 100 | - |
| E511502 | - | 200 | 115 | - | 48 | 100 | - |
| 051320M | - | 125 | 148 | 56 | 69 | 110 | - |
| 0511602 | - | 160 | 180 | 56 | 82 | 110 | - |
| 0513602 | - | 160 | 180 | 62 | 82 | 125 | - |
| 0512002 | - | 200 | 221 | 62 | 100 | 125 | - |
| 0534202 | - | 250 | 159 | 62 | 90 | 125 | - |
| 0515602 | - | 160 | 166 | 60 | 81 | 140 | - |
| 0514002 | - | 200 | 211 | 74 | 100 | 160 | - |
| 0514602 | - | 250 | 172 | 74 | 90 | 160 | - |
| 0534802 | - | 315 | 174 | 74 | 93 | 160 | - |
| 0512502 | - | 250 | 265 | 86 | 134 | 200 | - |
| 0513302 | - | 315 | 318 | 86 | 145 | 200 | - |
| 0513002 | - | 315 | 307 | 103 | 144 | 250 | - |
| 0519202 | - | 400 | 363 | 118 | 156 | 315 | - |
| E512202 | - | 200 | - | - | - | 140 | upon request |
