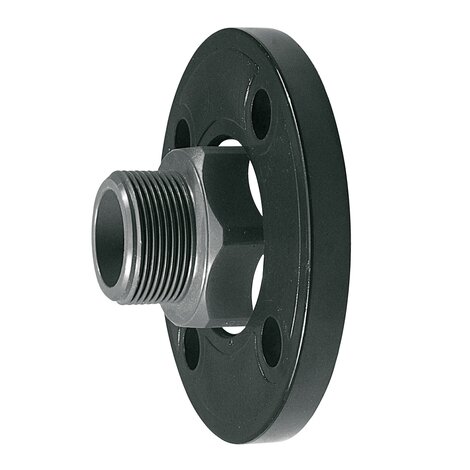

Male threaded coupling with flange
Threaded male coupling with flange. According to UNE EN 19009.
| Reference | tooltipImage | Box units | measurement | A | B | C | D | E | F | G | Size |
|---|---|---|---|---|---|---|---|---|---|---|---|
| 058008 | - | 10 | 50-1 1/2" | 1 1/2” | 110 | 150 | 2,5 | 16 | 17 | 24,5 | 50-1 1/2” |
| 058009 | - | 10 | 63-2" | 2” | 125 | 165 | 2 | 18 | 18,5 | 31,5 | 63-2” |
| 058010 | - | 5 | 75-2 1/2" | 3” | 160 | 200 | 10 | 20 | 23 | 33 | 90-3” |
| 058011 | - | 4 | 90-3" | - | - | - | - | - | - | - | - |
