MILV
Fittings according to british standard - equal socket.

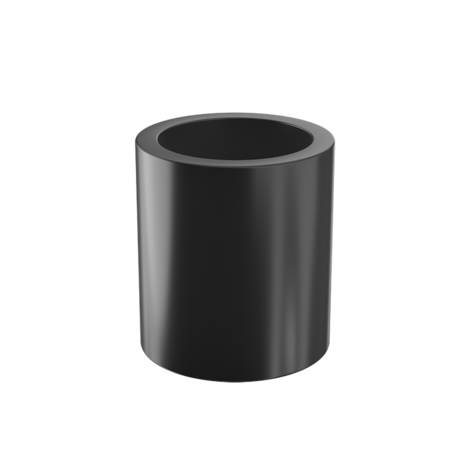

mm/inch double socket union, one socket for solvent welding to metric pipes and one for solvent welding to imperial (inches) pipes.
Series of fittings for pipes conveying fluids under pressure with solvent weld and threaded joints according to British Standard.

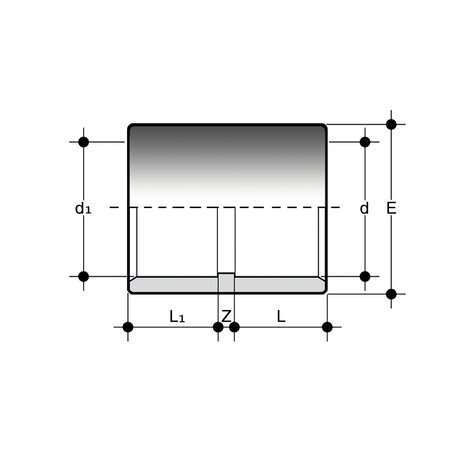

| Reference | system | Category | family | d x d1 | PN | Class | E | L | L1 | Z | g |
|---|---|---|---|---|---|---|---|---|---|---|---|
| MILV020012 | PVC-U system | Pressure Fittings | BS Fittings | 20 x 1/2" | 15 | E | 27 | 16 | 16,5 | 2,5 | 12 |
| MILV025034 | PVC-U system | Pressure Fittings | BS Fittings | 25 x 3/4" | 15 | E | 33 | 19 | 19,5 | 2,5 | 22 |
| MILV032100 | PVC-U system | Pressure Fittings | BS Fittings | 32 x 1" | 15 | E | 41 | 22 | 22,5 | 2,5 | 44 |
| MILV040114 | PVC-U system | Pressure Fittings | BS Fittings | 40 x 1"1/4 | 15 | E | 50 | 26 | 27 | 2,0 | 65 |
| MILV050112 | PVC-U system | Pressure Fittings | BS Fittings | 50 x 1"1/2 | 15 | E | 61 | 31 | 30 | 4,0 | 125 |
| MILV063200 | PVC-U system | Pressure Fittings | BS Fittings | 63 x 2" | 15 | E | 76 | 38 | 36 | 5,0 | 210 |
| MIV075 | PVC-U system | Pressure Fittings | BS Fittings | 75 x 2"1/2 | 15 | E | 90 | 44 | 44 | 4,0 | 250 |
| MILV090300 | PVC-U system | Pressure Fittings | BS Fittings | 90 x 3" | 15 | E | 108 | 51 | 50,5 | 5,5 | 438 |
| MILV110400 | PVC-U system | Pressure Fittings | BS Fittings | 110 x 4" | 15 | E | 131 | 61 | 63 | 4,0 | 852 |
