FRC

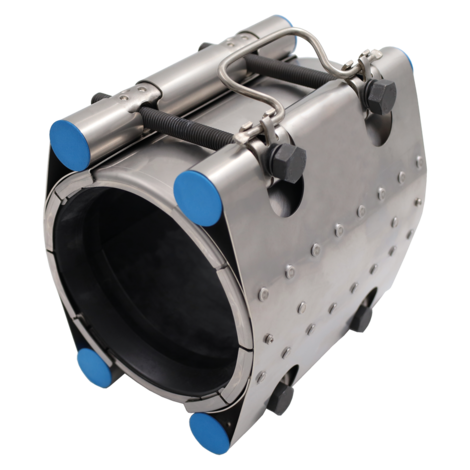

FRIAFLEX Stainless steel repair coupling
Repair coupling made of stainless steel for use on pipes of different materials (steel, cast iron, ductile iron, asbestos cement, PVC, GRP, PE-HD/PEX) in civil engineering.
- Special gasket design for reliable repair on brittle pipe materials such as cast iron
- Patented gasket design ensures largest diameter range
- Double joint and quick release for easy installation
- Stainless steel housing, lock, screws and nuts
- Gasket material EPDM
- Pressure level PN16
- Bending of the tubes up to 8°
- Temperature range -20°C to +40°C
Note:
When used on PEHD/PEX pipes, our SHVA support sleeve is required.
Alternatively, we recommend restrained products such as FRIAGRIP.
Gasket EPDM, DIN-EN 681-1 / KTW / UBA / DVGW-W270
PFA/PN water maximum = 16 bar

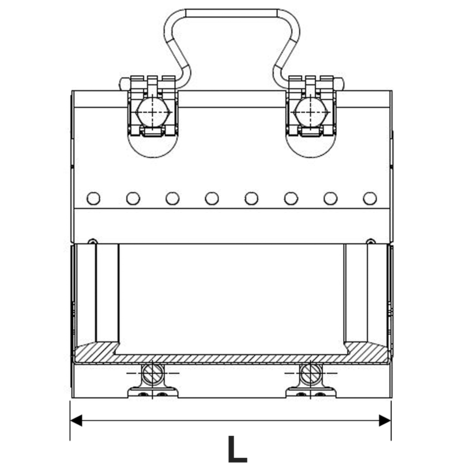

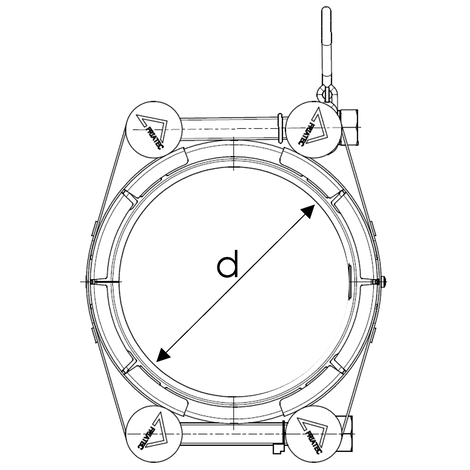

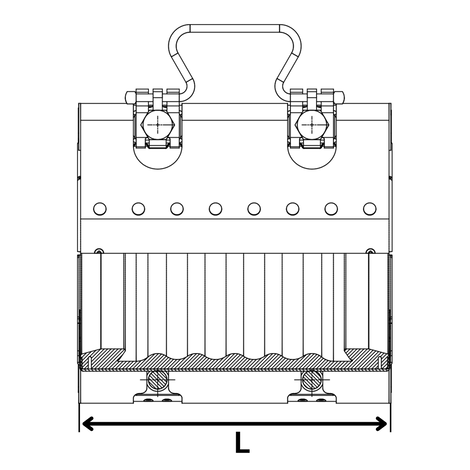

| Reference | d | PN | DN | BX | PU | SW | Weight [kg] |
|---|---|---|---|---|---|---|---|
| 591-087-200 | 87-109 | 16 | 80 | 1 | 24 | 17 | 6,000 |
| 591-104-200 | 104-129 | 16 | 100 | 1 | 24 | 17 | 8,000 |
| 591-158-200 | 158-184 | 16 | 150 | 1 | 24 | 17 | 11,000 |
| 591-218-200 | 218-243 | 16 | 200 | 1 | 24 | 17 | 14,000 |
