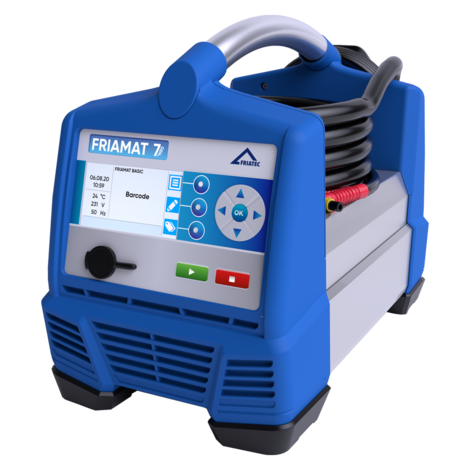

FRIAMAT 7 basic

Fusion unit without documentation function

Powerful universal fusion unit FRIAMAT 7 basic

State-of-the-art converter technology with active cooling.
Bright colour TFT display
With mini scanner or 1D/2D scanner (2D barcodes according to ISO 12176-5)
Extra long fusion cable (4 m)
Extra long power cable (5 m)
Weight approx. 12.8 kg

Note:

Possibility of updating the FRIAMAT software via the USB interface by the user.

Go back Data sheet

Reference	Article description	BX	PU	Weight [kg]
611130	With mini scanner	1	4	14,900
614130	With 1D/2D scanner	1	4	14,900

Technical data 1)	FRIAMAT 7 basic
Type of device	Universal fusion unit without documentation function
Model with mini scanner	Order no. 611130
Model with 1D/2D scanner	Order no. 614130
Maximum diameter	Up to d 1200 2)
Input voltage section	AC 190 V – 250 V
Frequency range	44 Hz … 66 Hz
Current consumption	AC 16 A maximum
Power	3.5 kW
Unit fuse	16 A sluggish
Welding tension	8 – 48 V
Output current	maximum 110 A
Welding current monitoring	Short circuit and interruption
Barcode type	1D-Code 2/5 interleaved 2D-Code (QR; Aztec; Data Matrix) according to ISO 12176-5
Interface	USB
Documentation of fusion data	No
Documentation of traceability data	No
Data memory	-
Log format	-
Manual emergency barcode input	Yes
FRIAMAT preCHECK function	Yes
Software update via USB interface	Yes
Fusion-Pass	No
Supervisor-Pass	No
Start/stop pass for remote control	Optional (Order no. 624003)
Working temperature range	-20 °C ... +50 °C
Language variants	23
Connection cable	5 m with contour plug
Fusion cable	4 m with connection plug Ø 4 mm
Weight	approx. 12.8 kg
Dimensions W x D x H	260 x 500 x 340 mm
Casing	Protection category IP 54 / protection category I

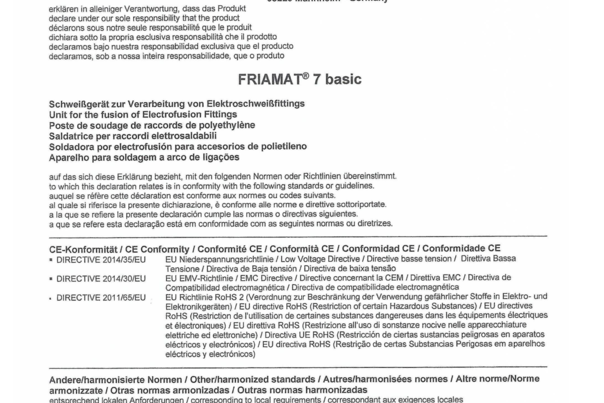

Approval / quality	CE, ISO 9001, WEEE Reg. No. DE 49130851, RoHS
Accessories	Operating instructions, transport box

¹⁾ Subject to technical modifications.

²⁾ With FRIAMAT 7 basic, FRIALEN and FRIAFIT safety fittings up to d 900 can be fused in the entire working temperature range from -20 °C to +50 °C.

Utilising processing fittings from other manufacturers is possible even up to d 1200 and possibly larger. However, the specific power requirement of the fitting at the prevailing processing temperature must always be clarified beforehand with the fitting manufacturer.

Powerful electrofusion unit with state-of-the-art converter technology and flow-optimized, active cooling.
High-resolution, extremely bright 4.3 “TFT color display.
With mini-scanner, reader wand or new 1D/2D scanner for reading 2D barcodes according to ISO 12176-5, Adapter bag, language selection, adjustable buzzer volume, manual emergency entry. Extra-long power cable (4 m) and extra-long fusion cable (5 m). Weight approx 12,8 kg.
Continuous monitoring of the entire fusion process and all device functions.
With FRIAMAT preCHECK function: The most advanced way to fuse with foresight. The FRIAMAT automatically determines whether the next fusion can be performed completely to the end.
The user himself can install software updates via USB interface.
