FSC

Gasket EPDM, DIN-EN 681-1 / KTW / UBA / DVGW-W270 / ACS / WRASPFA/PN water maximum = 16 bar

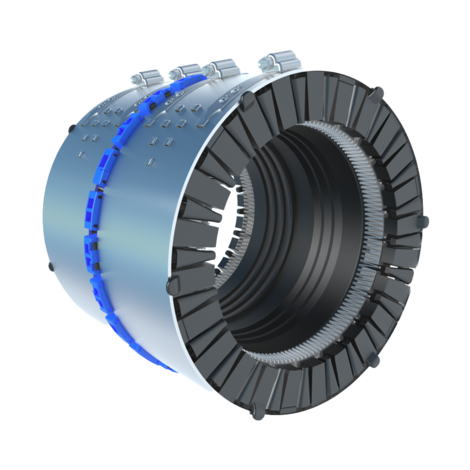

Restrained pipe connector for connecting pressure-pipes made of different materials (steel, cast iron, ductile iron, asbestos cement, PVC, PE-HD/PEX) in civil engineering.

Quick and ergonomic installation
Stagnation free design
One gripping system for all pipe materials
Automatic centering of the pipes
One fitting per nominal width
Case, and gripping bands made of stainless steel
Radial punch made of PP
Seal material EPDM
Pressure rating PN16
Diameter tolerance depending on dimensions up to max. 38 mm
Temerature range -20°C - +40°C
Angle of the pipes of max. 6°
An inner support sleeve is required for PE-HD/PEX pipes with wall thicknesses less than SDR17.6

Note:

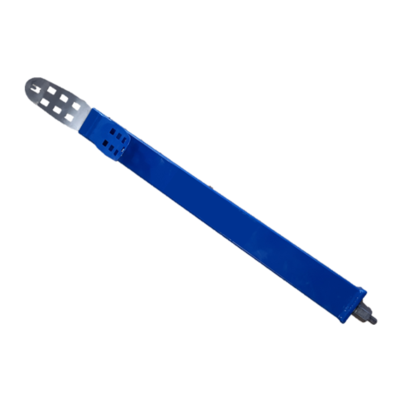

Can only be processed with hook spanners

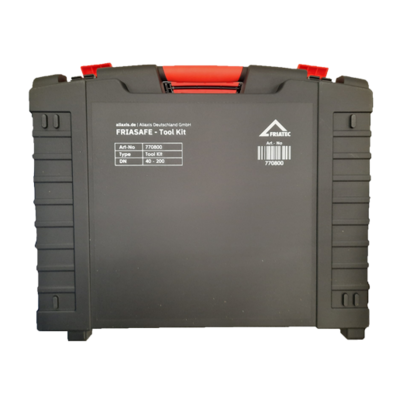

DN 40 - 80 (Order-No. 770810) or DN 100 - 200 (Order-No. 770812).

When used on AZ pipes, restrained function cannot be ensured

Go back Data sheet

Gasket EPDM, DIN-EN 681-1 / KTW / UBA / DVGW-W270 / ACS / WRAS

PFA/PN water maximum = 16 bar

Reference	d	DN	BX	PU	Weight [kg]
772101	40-64	40	1	240	1,400
772102	46-72	50	1	240	2,000
772103	63-90	65	1	144	2,400
772105	78-105	80	1	144	2,800
772107	104-132	100	1	75	4,600
772109	130-161	125	1	75	5,300
772111	158-192	150	1	60	7,400
772115	218-256	200	1	30	9,300
