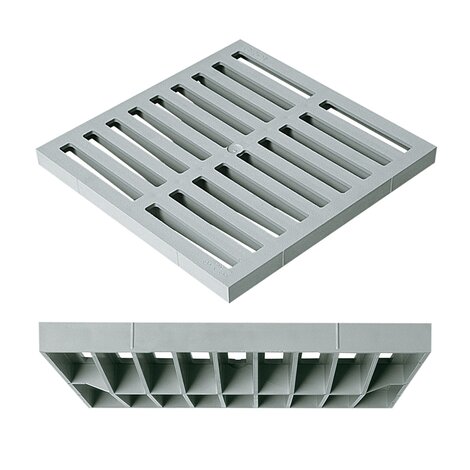

Pedestrian grid

Go back Data sheet
Pedestrian grid
Reference tooltipImage Box units measurement B H Size
034039 - 6 200 X 200 187 25 200 x 200
034040 - 3 300 X 300 284 30 300 x 300
034041 - 2 400 X 400 383 35 400 x 400
034057 - 2 550 X 550 539 45 550 x 550
