PH870CDTCXX

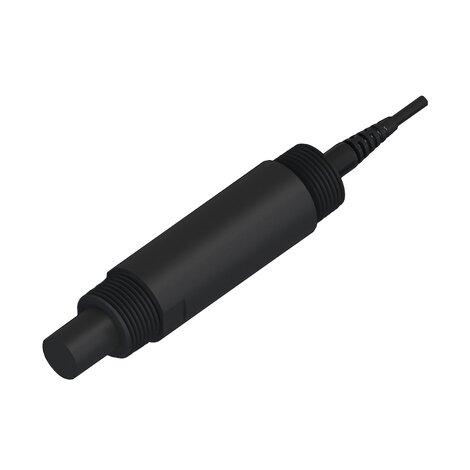

Ryton body flat surface electrode
Ryton double junction flat surface pH electrode with Pt1000
The new pH electrodes line
870 combines a tough ryton
body with auto-cleaning flat
pH surface and with a reliable
Pt1000 for an accurate
measurement in dirty liquid as
well as in aggressive solutions.
In addiction a wide junction
improves performances in
presence of suspended solids.
The new 870 electrodes allow
a direct installation by their
¾” threaded included in the
body: in-line installation using
the threads on the electrode
bottom or submersible
installation using the threads
on the electrode head.
Availability of specific versions
for special applications as:
horizontal mounting (-HM),
low conductive samples (-LC),
aggressive solutions (HF<2%)/
low values of pH (-HF).
| Reference | tooltipImage | system | Category | family | series | Features | Operative Range | Cable** | Connection | Installation | Weight (gr.) |
|---|---|---|---|---|---|---|---|---|---|---|---|
| PH870CDTC | - | Automation system | FLS Measurement and control Instrumentation | ph / ORP / Conductivity Electrodes | Bulb and Flat pH/ORP Electrodes with Epoxy, C-PVC, Ryton or Glass body | Pt100 included | pH 0-14* | Not required | 5 m (16,5 ft.) | 3/4" NPT | 250 |
| PH870CDTCHF | - | Automation system | FLS Measurement and control Instrumentation | ph / ORP / Conductivity Electrodes | Bulb and Flat pH/ORP Electrodes with Epoxy, C-PVC, Ryton or Glass body | Pt100 included | 0-14 pH (0-12,3 pH without Na+ error)/ Presence of HF (max 2%) | Not required | 5 m (16,5 ft.) | 3/4" NPT | 250 |
| PH870CDTCHM | - | Automation system | FLS Measurement and control Instrumentation | ph / ORP / Conductivity Electrodes | Bulb and Flat pH/ORP Electrodes with Epoxy, C-PVC, Ryton or Glass body | Pt100 included | 0-14 pH (0-12,3 pH without Na+ error)/ Horizontal mounting | Not required | 5 m (16,5 ft.) | 3/4" NPT | 250 |
| PH870CDTCLC | - | Automation system | FLS Measurement and control Instrumentation | ph / ORP / Conductivity Electrodes | Bulb and Flat pH/ORP Electrodes with Epoxy, C-PVC, Ryton or Glass body | Pt100 included | 0-14 pH (0-12,3 pH without Na+ error)/ Low conductivity (10 [CS:Simbolo:μ]S/cm | Not required | 5 m (16,5 ft.) | 3/4" NPT | 250 |
APPLICATIONS:
- Processing and Manufacturing industry
- Chemical processing
- Water treatment processes
- Cooling processes
- Heating processes
MAIN FEATURES:
- Temperature sensor combined
- Flat surface electrodes
- Tough Ryton body
- Double threaded body for in line and submersion installation
- Double junction technology
- HM option for horizontal mounting
- HF option for liquids with HF (max 2%)
- LC option for liquid with a conductivity lower than 100μS/cm

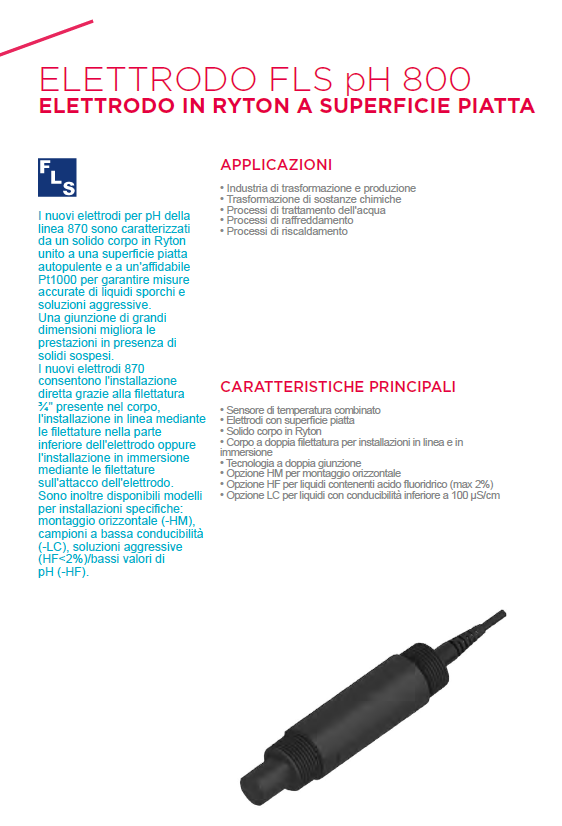

Downloads
