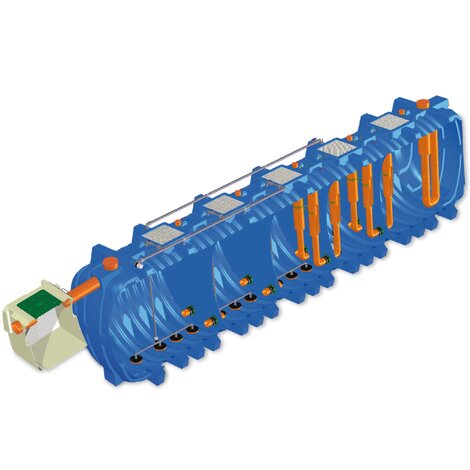

POLIMAXI, activated sludge system

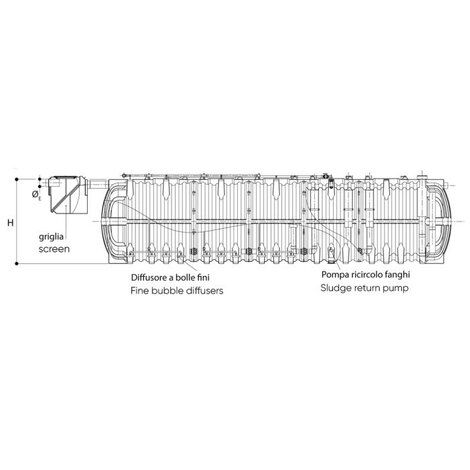

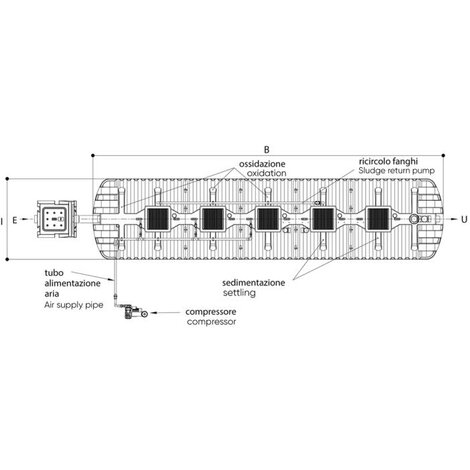

Activated Sludge Treatment System, consisting of 2 compartments: aeration compartment with air compressor fine bubble diffuser and settling chamber with air-lift sistem. Compliance with standard: EN 12255-6
| note : | The unit comes provided with: switchboard, static grill; optional: automatic grill, remote controll. Compliance with standard: EN 12255-6 |
| Reference | tooltipImage | Height H (cm) | V ox (m3) | V sett (m3) | ØE e ØU (mm) | Power (Kw) | I (cm) | L (cm) | Item | Users (E.I.) |
|---|---|---|---|---|---|---|---|---|---|---|
| IS09026 | - | 228 | 13 | 8 | 160 | 1,5 (kW) | 214 | 646 | A.E. 130 (380V) | 130 |
| IS09027 | - | 228 | 18 | 8 | 160 | 2,2 (kW) | 214 | 798 | A.E. 160 (380V) | 160 |
| IS09028 | - | 228 | 23 | 8 | 200 | 2,2 (kW) | 214 | 950 | A.E. 210 (380V) | 210 |
| IS09029 | - | 228 | 23 | 13 | 200 | 3 (kW) | 214 | 1102 | A.E. 250 (380V) | 250 |
| IS09030 | - | 228 | 28 | 13 | 200 | 3,0 (kW) | 214 | 1254 | A.E. 300 (380V) | 300 |
