Q/BBE-L - Union end
Union end, long spigot, for butt welding SDR 11 - S5.
Series of short and long fittings designed for conveying fluids under pressure for butt welding and electrofusion applications.

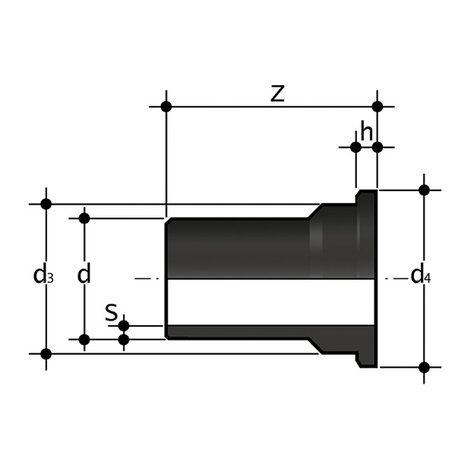

| Reference | tooltipImage | system | Category | family | series | d | L | h | d3 | d4 | S | g |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| QBBEL11020 | - | PE Pipe and Fittings | Pressure Fittings | ISO-UNI Fittings | Long-spigot-for-butt-welding-and-electrofusion | 20 | 94 | 5 | 27,30 | 29,90 | 1,9 | 22 |
| QBBEL11025 | - | PE Pipe and Fittings | Pressure Fittings | ISO-UNI Fittings | Long-spigot-for-butt-welding-and-electrofusion | 25 | 95 | 6 | 35,80 | 38,60 | 2,3 | 38 |
| QBBEL11032 | - | PE Pipe and Fittings | Pressure Fittings | ISO-UNI Fittings | Long-spigot-for-butt-welding-and-electrofusion | 32 | 95 | 6 | 41,20 | 44,50 | 2,9 | 44 |
| QBBEL11040 | - | PE Pipe and Fittings | Pressure Fittings | ISO-UNI Fittings | Long-spigot-for-butt-welding-and-electrofusion | 40 | 95 | 7 | 52,60 | 56,20 | 3,7 | 73 |
| QBBEL11050 | - | PE Pipe and Fittings | Pressure Fittings | ISO-UNI Fittings | Long-spigot-for-butt-welding-and-electrofusion | 50 | 95 | 7 | 58,60 | 62,30 | 4,6 | 107 |
| QBBEL11063 | - | PE Pipe and Fittings | Pressure Fittings | ISO-UNI Fittings | Long-spigot-for-butt-welding-and-electrofusion | 63 | 95 | 8 | 73,60 | 78,10 | 5,8 | 165 |
- Size range: d 12 ÷ d 800 (mm)
- Nominal pressure: SDR 17 (PN10) with water at 20 °C, SDR 11 (PN16) with water at 20 °C
- Temperature range: -40 °C ÷ 60 °C
- Coupling standards - Reference standards:
- Welding: EN ISO 15494. Can be coupled to pipes according to EN ISO 15494
- Flanging system: ISO 7005-1, EN 1092-1, EN ISO 15494, ANSI B16.5 cl.150
- Construction criteria: UNI EN ISO 15494
- Test methods and requirements: UNI EN ISO 15494
- Installation criteria: DVS 2202-1, DVS 2207-1, UNI EN 12201- 3, UNI 10520, ISO 21307,UNI 10521, UNI EN 1555-3, ISO 4427- 3, ISO 4437-3
- Fitting material: PE-HD
- Seal material: EPDM, FKM
