Q/BFO - Brass union end
Adaptor for socket welding. Union end in brass with BSP female thread.
Series of fittings designed for conveying fluids under pressure with a hot thread and weld connection system (socket welding).

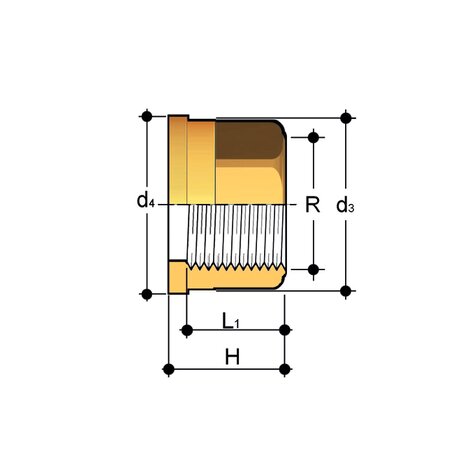

| Reference | tooltipImage | system | Category | family | R | d3 | d4 | H | L1 | g |
|---|---|---|---|---|---|---|---|---|---|---|
| QBFO038 | - | PP-H system | Pressure Fittings | ISO-BSP Fittings Socket Welding | 3/8" | 22 | 24 | 21,5 | 13,5 | 38 |
| QBFO012 | - | PP-H system | Pressure Fittings | ISO-BSP Fittings Socket Welding | 1/2" | 27,5 | 30,1 | 22,5 | 16,5 | 60 |
| QBFO034 | - | PP-H system | Pressure Fittings | ISO-BSP Fittings Socket Welding | 3/4" | 36 | 38,8 | 25,5 | 18,5 | 116 |
| QBFO100 | - | PP-H system | Pressure Fittings | ISO-BSP Fittings Socket Welding | 1" | 41;5 | 44,7 | 27,5 | 19,.5 | 144 |
| QBFO114 | - | PP-H system | Pressure Fittings | ISO-BSP Fittings Socket Welding | 1"1/4 | 53 | 56,5 | 30,5 | 21.5 | 260 |
| QBFO112 | - | PP-H system | Pressure Fittings | ISO-BSP Fittings Socket Welding | 1"1/2 | 59 | 62,6 | 33,5 | 23 | 325 |
| QBFO200 | - | PP-H system | Pressure Fittings | ISO-BSP Fittings Socket Welding | 2" | 74 | 78,4 | 38,5 | 27 | 578 |
