QLV
Fittings according to British standard - stubs.

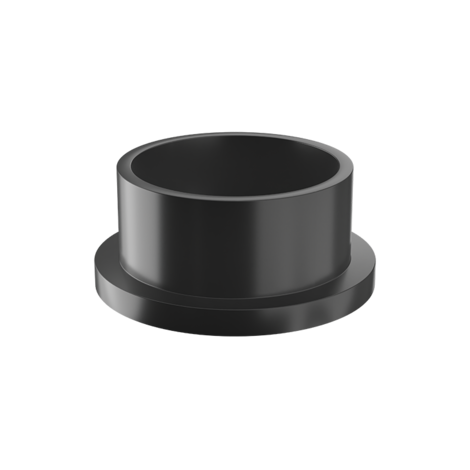

Serrated face stub with solvent weld socket, for use with stubs QLV and flat gaskets QHV/X and QHV/Y (QHV/Y only when coupling to ISO/DIN “ODV and ODB” flanges).
Series of fittings for pipes conveying fluids under pressure with solvent weld and threaded joints according to British Standard.
| Reference | tooltipImage | system | Category | family | d | PN | Class | E | F | L | Sp | Z | g |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| QLV200 | - | PVC-U system | Pressure Fittings | BS Fittings | 2" | 15 | E | 76 | 90 | 38 | 9 | 3 | 110 |
| QPV075 | - | PVC-U system | Pressure Fittings | BS Fittings | 2"1/2 | 15 | E | 90 | 106 | 44 | 10 | 3 | 165 |
| QLV300 | - | PVC-U system | Pressure Fittings | BS Fittings | 3" | 15 | E | 108 | 125 | 51 | 11 | 5 | 270 |
| QLV400 | - | PVC-U system | Pressure Fittings | BS Fittings | 4" | 15 | E | 131 | 158 | 61 | 12 | 5 | 445 |
| QLV600 | - | PVC-U system | Pressure Fittings | BS Fittings | 6" | 12 | D | 188 | 216 | 86 | 16 | 5 | 1250 |
| QLV800 | - | PVC-U system | Pressure Fittings | BS Fittings | 8" | 12 | D | 250 | 270 | 115 | 20 | 6,5 | 2150 |
