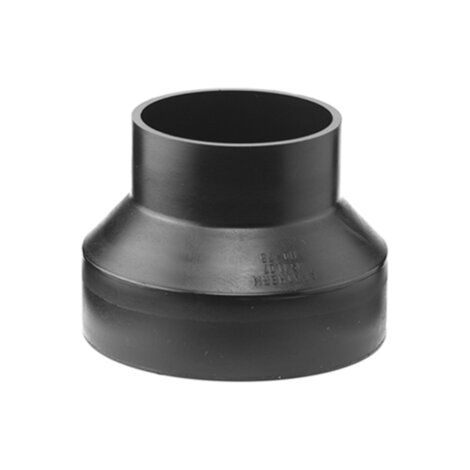

Reducer concentric

Name : Reducer concentric
Subcategory : Reducers
Go back Data sheet
Reducer concentric
Reducer concentric
Reducer concentric
Reducer concentric

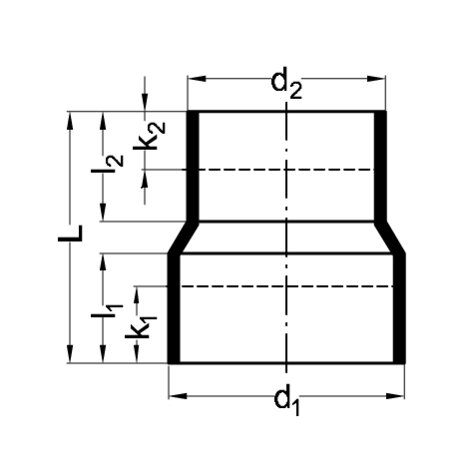

Reference Name tooltipImage d1/ d2 Kg L l1 l2 noteText noteEnum
150403 Reducer concentric - 40 32 0,026 80 30 30 butt-weld only -
150503 Reducer concentric - 50 32 0,029 80 30 30 butt-weld only -
150504 Reducer concentric - 50 40 0,032 80 30 30 butt-weld only -
150604 Reducer concentric - 63 40 0,038 80 30 30 butt-weld only -
150605 Reducer concentric - 63 50 0,041 80 30 30 butt-weld only -
150656 Reducer concentric - 63 56 0,043 80 30 30 butt-weld only -
150704 Reducer concentric - 75 40 0,027 80 30 30 butt-weld only -
150705 Reducer concentric - 75 50 0,047 80 30 30 butt-weld only -
150706 Reducer concentric - 75 63 0,053 80 30 30 butt-weld only -
150756 Reducer concentric - 75 56 0,049 80 30 30 butt-weld only -
150904 Reducer concentric - 90 40 0,043 80 30 30 butt-weld only -
150905 Reducer concentric - 90 50 0,062 80 30 28 butt-weld only -
150906 Reducer concentric - 90 63 0,064 80 30 30 butt-weld only -
150907 Reducer concentric - 90 75 0,066 80 30 28 butt-weld only -
150956 Reducer concentric - 90 56 0,07 80 30 30 butt-weld only -
151104 Reducer concentric - 110 40 0,089 80 30 30 butt-weld only -
151105 Reducer concentric - 110 50 0,098 80 30 30 butt-weld only -
151106 Reducer concentric - 110 63 0,091 80 30 30 butt-weld only -
151107 Reducer concentric - 110 75 0,095 80 30 30 butt-weld only -
151109 Reducer concentric - 110 90 0,096 80 30 30 butt-weld only -
151156 Reducer concentric - 110 56 0,096 80 30 30 butt-weld only -
151207 Reducer concentric - 125 75 0,123 80 30 30 butt-weld only -
151209 Reducer concentric - 125 90 0,12 80 30 30 butt-weld only -
151211 Reducer concentric - 125 110 0,134 80 35 30 butt-weld only -
151611 Reducer concentric - 160 110 0,215 80 35 30 butt-weld only -
151612 Reducer concentric - 160 125 0,237 80 39 30 butt-weld only -
152016 Reducer concentric - 200 160 0,536 149 50 40 butt-weld only 1 1
152516 Reducer concentric - 250 160 0,999 194 60 40 butt-weld only 1 1
152520 Reducer concentric - 250 200 0,956 182 60 50 butt-weld only 1 1
153120 Reducer concentric - 315 200 2,25 230 90 80 butt-weld only 1 1
153125 Reducer concentric - 315 250 2,6 230 90 90 butt-weld only 1 1
155604 Reducer concentric - 56 40 0,036 80 30 30 butt-weld only -
155605 Reducer concentric - 56 50 0,038 80 30 30 butt-weld only -
1 butt-weld only
