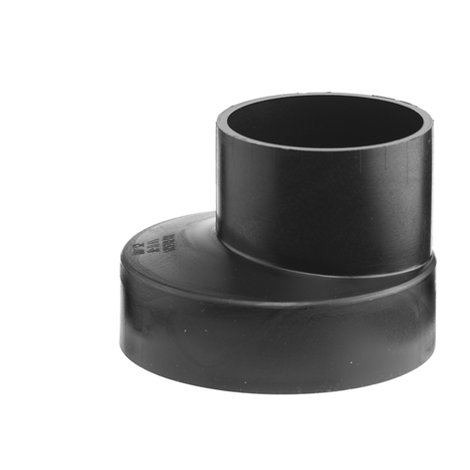

Reducer eccentric

Name : Reducer eccentric
Subcategory : Reducers
Go back Data sheet
Reducer eccentric
Reducer eccentric
Reducer eccentric
Reducer eccentric

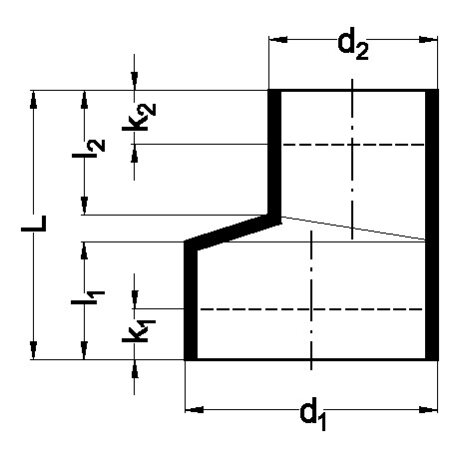

Reference Name tooltipImage artNr2 Kg l1 l2 k1 L d2 k2
16 05 04 Reducer eccentric - 312.314 0,033 35 37 20 80 40 20
16 06 04 Reducer eccentric - 312.316 0,042 35 37 20 80 40 20
16 06 05 Reducer eccentric - 312.316 0,044 35 37 20 80 50 20
16 06 56 Reducer eccentric - 312.316 0,045 35 37 20 80 56 20
16 07 04 Reducer eccentric - 312.317 0,049 35 30 20 80 40 20
16 07 05 Reducer eccentric - 312.317 0,049 35 37 20 80 50 20
16 07 06 Reducer eccentric - 312.317 0,054 35 37 20 80 63 20
16 07 56 Reducer eccentric - 312.317 0,052 35 37 20 80 56 20
16 09 04 Reducer eccentric - 312.318 0,064 30 33 20 80 40 20
16 09 05 Reducer eccentric - 312.318 0,066 30 34 20 80 50 20
16 09 06 Reducer eccentric - 312.318 0,067 30 39 20 80 63 20
16 09 07 Reducer eccentric - 312.318 0,070 30 44 20 80 75 20
16 09 56 Reducer eccentric - 312.318 0,069 30 36 20 80 56 20
16 11 04 Reducer eccentric - 312.321 0,088 31 34 20 80 40 20
16 11 05 Reducer eccentric - 312.321 0,095 31 34 20 80 50 20
16 11 06 Reducer eccentric - 312.321 0,096 31 34 20 80 63 20
16 11 07 Reducer eccentric - 312.321 0,095 31 36 20 80 75 20
16 11 09 Reducer eccentric - 312.321 0,105 31 41 20 80 90 20
16 11 56 Reducer eccentric - 312.321 0,095 31 35 20 80 56 20
16 12 05 Reducer eccentric - 312.322 0,130 35 37 20 80 50 20
16 12 06 Reducer eccentric - 312.322 0,120 35 37 20 80 63 20
16 12 07 Reducer eccentric - 312.322 0,125 35 30 20 80 75 20
16 12 09 Reducer eccentric - 312.322 0,128 35 32 20 80 90 20
16 12 11 Reducer eccentric - 312.322 0,137 36 36 20 80 110 20
16 12 56 Reducer eccentric - 312.322 0,110 35 37 20 80 56 20
16 16 11 Reducer eccentric - 312.323 0,217 28 36 20 80 110 20
16 16 12 Reducer eccentric - 312.323 0,225 32 36 20 80 125 20
16 56 04 Reducer eccentric - 312.315 0,037 35 37 20 80 40 20
16 56 05 Reducer eccentric - 312.315 0,039 35 37 20 80 50 20
