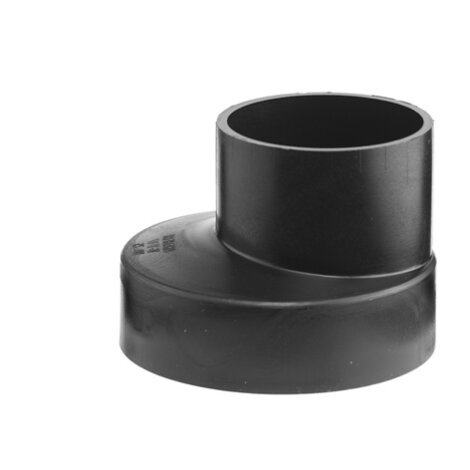

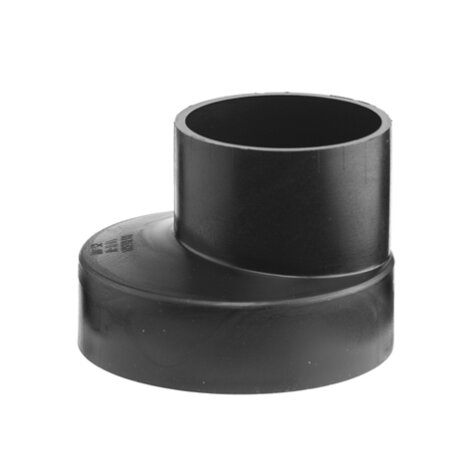

Reducer eccentric

Name :	Reducer eccentric
Subcategory :	Reducers

Go back Data sheet

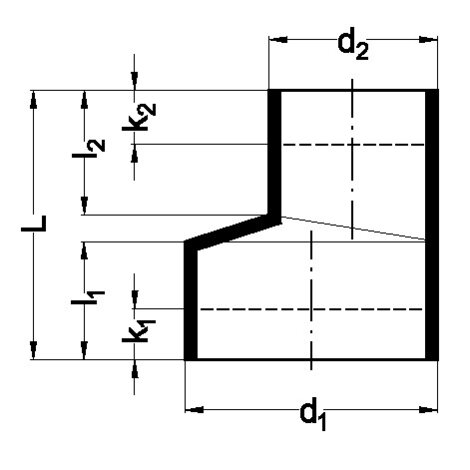

Reference	Name	tooltipImage	artNr2	d₁/	d2	Kg	L	l1	l2	k1	k2
160504	Reducer eccentric	-	312.314	50	40	0,033	80	35	37	20	20
160604	Reducer eccentric	-	312.316	63	40	0,042	80	35	37	20	20
160605	Reducer eccentric	-	312.316	63	50	0,044	80	35	37	20	20
160656	Reducer eccentric	-	312.316	63	56	0,045	80	35	37	20	20
160704	Reducer eccentric	-	312.317	75	40	0,049	80	35	30	20	20
160705	Reducer eccentric	-	312.317	75	50	0,049	80	35	37	20	20
160706	Reducer eccentric	-	312.317	75	63	0,054	80	35	37	20	20
160756	Reducer eccentric	-	312.317	75	56	0,052	80	35	37	20	20
160904	Reducer eccentric	-	312.318	90	40	0,064	80	30	33	20	20
160905	Reducer eccentric	-	312.318	90	50	0,066	80	30	34	20	20
160906	Reducer eccentric	-	312.318	90	63	0,067	80	30	39	20	20
160907	Reducer eccentric	-	312.318	90	75	0,07	80	30	44	20	20
160956	Reducer eccentric	-	312.318	90	56	0,069	80	30	36	20	20
161104	Reducer eccentric	-	312.321	110	40	0,088	80	31	34	20	20
161105	Reducer eccentric	-	312.321	110	50	0,095	80	31	34	20	20
161106	Reducer eccentric	-	312.321	110	63	0,096	80	31	34	20	20
161107	Reducer eccentric	-	312.321	110	75	0,095	80	31	36	20	20
161109	Reducer eccentric	-	312.321	110	90	0,105	80	31	41	20	20
161156	Reducer eccentric	-	312.321	110	56	0,095	80	31	35	20	20
161206	Reducer eccentric	-	312.322	125	63	0,12	80	35	37	20	20
161207	Reducer eccentric	-	312.322	125	75	0,125	80	35	30	20	20
161209	Reducer eccentric	-	312.322	125	90	0,128	80	35	32	20	20
161211	Reducer eccentric	-	312.322	125	110	0,137	80	36	36	20	20
161256	Reducer eccentric	-	312.322	125	56	0,11	80	35	37	20	20
161611	Reducer eccentric	-	312.323	160	110	0,217	80	28	36	20	20
161612	Reducer eccentric	-	312.323	160	125	0,225	80	32	36	20	20
165604	Reducer eccentric	-	312.315	56	40	0,037	80	35	37	20	20
165605	Reducer eccentric	-	312.315	56	50	0,039	80	35	37	20	20
