Reducer off-center (spigot fitting)

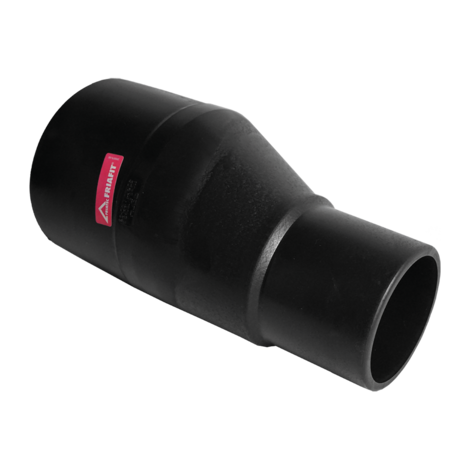

Reducer off-center, SDR 17 (spigot fitting) RES
- HD-PE fitting for processing without holding devices with FRIAFIT couplers AM
Note:
Other dimensions on request.
PE 80 / PE 100
Maximum permissible test pressure 0.5 bar to DIN EN 1610
| Reference | d1 | d2 | BX | L | t | t1 | s1 | s2 | Weight kg |
|---|---|---|---|---|---|---|---|---|---|
| 681018 | 110 | 125 | 1 | 264 | 85 | 85 | 6,6 | 7,4 | 1,700 |
| 681801 | 110 | 160 | 1 | 310 | 90 | 95 | 6,6 | 9,5 | 1,700 |
| 681802 | 160 | 225 | 1 | 404 | 100 | 150 | 9,5 | 13,4 | 3,550 |
| 681804 | 200 | 225 | 1 | 440 | 100 | 250 | 11,9 | 12,8 | 4,100 |
| 681810 | 225 | 280 | 1 | 540 | 150 | 250 | 13,4 | 16,6 | 9,200 |
