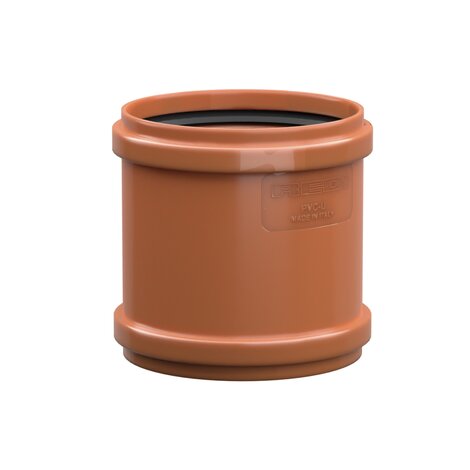

Repair/Slip coupler
Pipes and fittings are made of PVC-U for non pressure underground drainage and sewage applications.
Application area code is “U” or “UD” where applicable.
Push-Fit PVC-U Fittings EN 1401
Gaskets EN 681-1 DIN 4060
RAL 8023 Red - RAL 7037 Grey

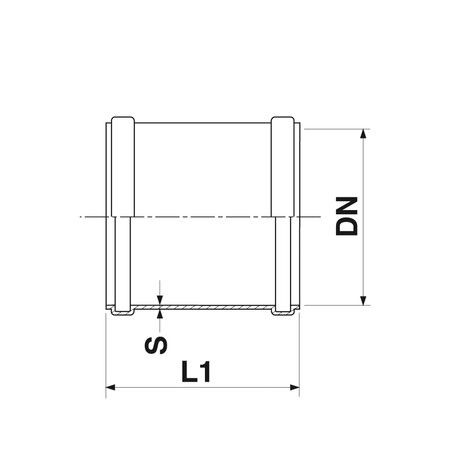

| Reference | tooltipImage | DN (mm) | S (mm) | L1 (mm) | RAL | Gasket | Type |
|---|---|---|---|---|---|---|---|
| 0611142 | - | 110 | 2,9 | 122 | 7037 | Bloccata/Fixed | - |
| 061115E | - | 110 | 2,9 | 122 | 8023 | Standard | - |
| 0611242 | - | 125 | 2,9 | 141 | 7037 | Bloccata/Fixed | - |
| 061125E | - | 125 | 2,9 | 141 | 8023 | Standard | - |
| 0611642 | - | 160 | 3,6 | 151 | 7037 | Bloccata/Fixed | - |
| 061165E | - | 160 | 3,6 | 151 | 8023 | Standard | - |
| 0612042 | - | 200 | 4,4 | 217 | 7037 | Bloccata | - |
| 061205E | - | 200 | 4,4 | 217 | 8023 | Standard | - |
| 0612552 | - | 250 | 5,5 | 254 | 7037 | Standard | - |
| 0612591 | - | 250 | 5,5 | 254 | 8023 | Standard | - |
| 0613052 | - | 315 | 6,9 | 297 | 7037 | Standard | - |
| 0613091 | - | 315 | 6,9 | 297 | 8023 | Standard | - |
| 0614052 | - | 400 | 8,8 | 325 | 7037 | Standard | - |
| 0614091 | - | 400 | 8,8 | 325 | 8023 | Standard | - |
| 1615051 | - | 500 | 9,8 | 440 | 8023 | Standard | Thermoformed |
| 1615052 | - | 500 | 9,8 | 440 | 7037 | Standard | Thermoformed |
| D616391 | - | 630 | - | - | 8023 | Standard | Fabricated |
