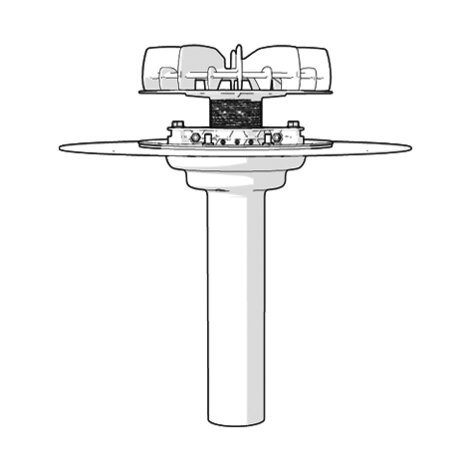

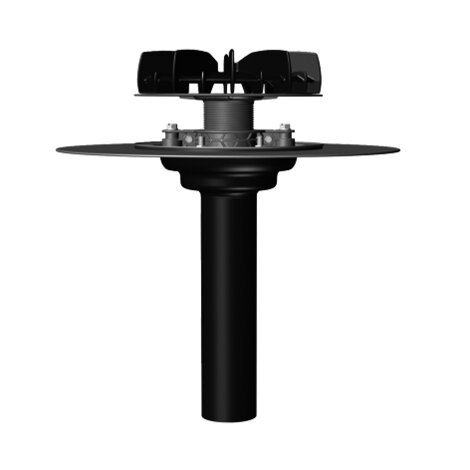

Roof outlet Akasison adjustable emergency XL75
Roof outlet emergency overflow for siphonic roof drainage systems.
Delivery includes:Air baffle with integrated leaf guard (UV-stabilized).
Connection to HDPE.
Heated models include a 230V heating element.
Connection to HDPE: with electrofusion coupler d75 mm Code 410795.
Drilling core size: Ø ਲ 80 mm.
140 mm in combination with mounting sleeve Code 747713.
160 mm in combination with reinforcement plate with fire protection Code 747722.
Outlet: d1<> = 75 mm
Performance: 1-17,7 l/s.
Material: ASA, stainless steel, HDPE.
Adjustable height: 30-100 mm.
Delivery includes
Connection to HDPE
Drilling core size
Outlet
Performance
Material
Adjustable height
| Name : | Roof outlet Akasison adjustable emergency XL75 |
| Subcategory : | Roof outlets |
| Reference | Name | tooltipImage | Kg | d1 | Type | description |
|---|---|---|---|---|---|---|
| 74 75 70 | Roof outlet Akasison adjustable emergency XL75 | - | 2,040 | 75 | Akasison XL75 C | Clamp flange |
| 74 75 71 | Roof outlet Akasison adjustable emergency XL75 | - | 2,164 | 75 | Akasison XL75 HC | Clamp flange, heated |
| 74 75 72 | Roof outlet Akasison adjustable emergency XL75 | - | 2,040 | 75 | Akasison XL75 B | Bitumen |
| 74 75 73 | Roof outlet Akasison adjustable emergency XL75 | - | 2,164 | 75 | Akasison XL75 HB | Bitumen, heated |
| 74 75 74 | Roof outlet Akasison adjustable emergency XL75 | - | 2,040 | 75 | Akasison XL75 FPO | PVC |
| 74 75 75 | Roof outlet Akasison adjustable emergency XL75 | - | 2,040 | 75 | Akasison XL75 H PVC | PVC, heated |
| 74 75 76 | Roof outlet Akasison adjustable emergency XL75 | - | 2,040 | 75 | Akasison XL75 FPO | FPO |
| 74 75 77 | Roof outlet Akasison adjustable emergency XL75 | - | 2,040 | 75 | Akasison XL75 H FPO | FPO, heated |
