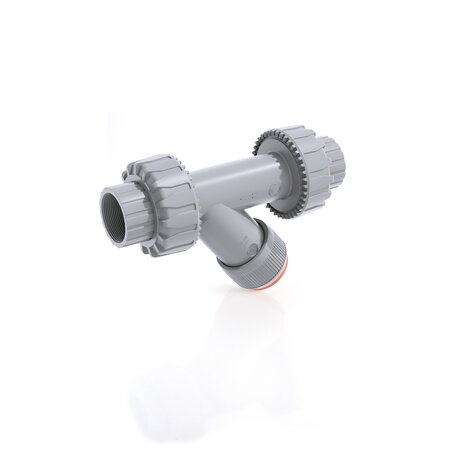

RVUNC - Sediment strainer DN 15:50
Sediment strainer with NPT threaded female union ends.
The RV sediment strainer limits the passage of any solid particles present in the fluid by means of a strainer.
EPDM
| Reference | system | Category | family | series | R | DN | PN | A max | B | E | H | L | Z | g |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| RVUNC012E | PVC-C system | Manual valves | Auxiliary valves | RV DN 10÷100 | 1/2” | 15 | 16 | 125 | 72 | 55 | 143 | 17,8 | 107,4 | 231 |
| RVUNC034E | PVC-C system | Manual valves | Auxiliary valves | RV DN 10÷100 | 3/4” | 20 | 16 | 145 | 84 | 66 | 159 | 18 | 123 | 392 |
| RVUNC100E | PVC-C system | Manual valves | Auxiliary valves | RV DN 10÷100 | 1” | 25 | 16 | 165 | 95 | 75 | 183 | 22,6 | 137,8 | 576 |
| RVUNC114E | PVC-C system | Manual valves | Auxiliary valves | RV DN 10÷100 | 1” 1/4 | 32 | 16 | 190 | 111 | 87 | 214 | 25,1 | 163,8 | 812 |
| RVUNC112E | PVC-C system | Manual valves | Auxiliary valves | RV DN 10÷100 | 1” 1/2 | 40 | 16 | 210 | 120 | 100 | 235 | 24,7 | 185,6 | 1211 |
| RVUNC200E | PVC-C system | Manual valves | Auxiliary valves | RV DN 10÷100 | 2” | 50 | 16 | 240 | 139 | 120 | 285 | 29,6 | 275,8 | 2051 |
FKM
| Reference | system | Category | family | series | R | DN | PN | A max | B | E | H | L | Z | g |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| RVUNC012F | PVC-C system | Manual valves | Auxiliary valves | RV DN 10÷100 | 1/2” | 15 | 16 | 125 | 72 | 55 | 143 | 17,8 | 107,4 | 231 |
| RVUNC034F | PVC-C system | Manual valves | Auxiliary valves | RV DN 10÷100 | 3/4” | 20 | 16 | 145 | 84 | 66 | 159 | 18 | 123 | 392 |
| RVUNC100F | PVC-C system | Manual valves | Auxiliary valves | RV DN 10÷100 | 1” | 25 | 16 | 165 | 95 | 75 | 183 | 22,6 | 137,8 | 576 |
| RVUNC114F | PVC-C system | Manual valves | Auxiliary valves | RV DN 10÷100 | 1” 1/4 | 32 | 16 | 190 | 111 | 87 | 214 | 25,1 | 163,8 | 812 |
| RVUNC112F | PVC-C system | Manual valves | Auxiliary valves | RV DN 10÷100 | 1” 1/2 | 40 | 16 | 210 | 120 | 100 | 235 | 24,7 | 185,6 | 1211 |
| RVUNC200F | PVC-C system | Manual valves | Auxiliary valves | RV DN 10÷100 | 2” | 50 | 16 | 240 | 139 | 120 | 285 | 29,6 | 225,8 | 2051 |
- Connection system for solvent weld, threaded and flanged joints
- Strainer mounted on an easily removed support that facilitates the cleaning or replacement
- Valve material compatibility (PVC-C) with water conveyance, drinking water and other food substances according to current regulations
- Can be maintained with the valve body installed
