RVUOAC - Sediment strainer DN 15:50

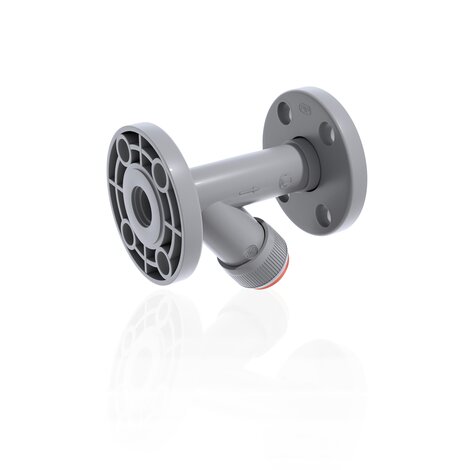

Sediment strainer with fixed flanges, drilled ANSI B16.5 cl.150 #FF.
The RV sediment strainer limits the passage of any solid particles present in the fluid by means of a strainer.
EPDM
| Reference | system | Category | family | series | Size | DN | PN | A max | B | F | f | H | g |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| RVUOAC012E | PVC-C system | Manual valves | Auxiliary valves | RV DN 10÷100 | 1/2" | 15 | 16 | 125 | 72 | 60,3 | 15,9 | 175 | 360 |
| RVUOAC034E | PVC-C system | Manual valves | Auxiliary valves | RV DN 10÷100 | 3/4" | 20 | 16 | 145 | 84 | 69,9 | 15,9 | 214 | 495 |
| RVUOAC100E | PVC-C system | Manual valves | Auxiliary valves | RV DN 10÷100 | 1" | 25 | 16 | 165 | 95 | 79,4 | 15,9 | 237 | 660 |
| RVUOAC114E | PVC-C system | Manual valves | Auxiliary valves | RV DN 10÷100 | 1"1/4 | 32 | 16 | 190 | 111 | 88,9 | 15,9 | 253 | 1000 |
| RVUOAC112E | PVC-C system | Manual valves | Auxiliary valves | RV DN 10÷100 | 1"1/2 | 40 | 16 | 210 | 120 | 98,4 | 15,9 | 289 | 1320 |
| RVUOAC200E | PVC-C system | Manual valves | Auxiliary valves | RV DN 10÷100 | 2" | 50 | 16 | 240 | 139 | 120,7 | 19,1 | 333 | 1910 |
FKM
| Reference | system | Category | family | series | Size | DN | PN | A max | B | F | f | H | g |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| RVUOAC012F | PVC-C system | Manual valves | Auxiliary valves | RV DN 10÷100 | 1/2" | 15 | 16 | 125 | 72 | 60,3 | 15,9 | 175 | 360 |
| RVUOAC034F | PVC-C system | Manual valves | Auxiliary valves | RV DN 10÷100 | 3/4" | 20 | 16 | 145 | 84 | 69,9 | 15,9 | 214 | 495 |
| RVUOAC100F | PVC-C system | Manual valves | Auxiliary valves | RV DN 10÷100 | 1" | 25 | 16 | 165 | 95 | 79,4 | 15,9 | 237 | 660 |
| RVUOAC114F | PVC-C system | Manual valves | Auxiliary valves | RV DN 10÷100 | 1"1/4 | 32 | 16 | 190 | 111 | 88,9 | 15,9 | 253 | 1000 |
| RVUOAC112F | PVC-C system | Manual valves | Auxiliary valves | RV DN 10÷100 | 1"1/2 | 40 | 16 | 210 | 120 | 98,4 | 15,9 | 289 | 1320 |
| RVUOAC200F | PVC-C system | Manual valves | Auxiliary valves | RV DN 10÷100 | 2" | 50 | 16 | 240 | 139 | 120,7 | 19,1 | 333 | 1910 |
- Connection system for solvent weld, threaded and flanged joints
- Strainer mounted on an easily removed support that facilitates the cleaning or replacement
- Valve material compatibility (PVC-C) with water conveyance, drinking water and other food substances according to current regulations
- Can be maintained with the valve body installed
