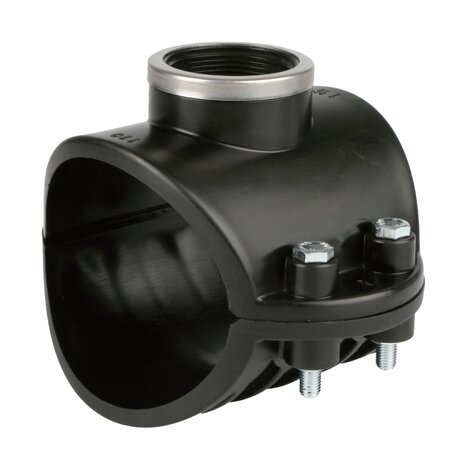

Saddle single outlet 4 bolts

BSP reinforced clamp saddles

Go back Data sheet

Reference	tooltipImage	Box units	measurement	A	B	diamPipe	thread
053166	-	35	63-1/2"	95	80	63	1/2”
053167	-	35	63-3/4"	97	80	63	3/4”
053168	-	35	63-1"	101	80	63	1”
053169	-	35	63-1 1/4"	101	80	63	1 1/4”
053170	-	35	63-1 1/2"	101	80	63	1 1/2”
053171	-	20	75-1/2"	116	93	75	1/2”
053172	-	20	75-3/4"	118	93	75	3/4”
053173	-	20	75-1"	121	93	75	1”
053174	-	20	75-1 1/4"	122	93	75	1 1/4”
053175	-	20	75-1 1/2"	122	93	75	1 1/2”
053176	-	20	75-2"	124	93	75	2”
053177	-	15	90-1/2"	135	100	90	1/2”
053178	-	15	90-3/4"	135	100	90	3/4”
053179	-	15	90-1"	136	100	90	1”
053180	-	15	90-1 1/4"	136	100	90	1 1/4”
053181	-	15	90-1 1/2"	137	100	90	1 1/2”
053182	-	15	90-2"	139	100	90	2”
053183	-	6	110-1/2"	157	114	110	1/2”
053184	-	6	110-3/4"	157	114	110	3/4”
053185	-	6	110-1"	157	114	110	1”
053186	-	6	110-1 1/4"	160	114	110	1 1/4”
053187	-	6	110-1 1/2"	160	114	110	1 1/2”
053188	-	6	110-2"	161	114	110	2”
053189	-	6	125-3/4"	166	108	125	3/4”
053190	-	6	125-1"	163	108	125	1”
053191	-	6	125-1 1/4"	167	167	125	1 1/4”
053192	-	6	125-1 1/2"	167	108	125	1 1/2”
053193	-	6	125-2"	167	108	125	2”
