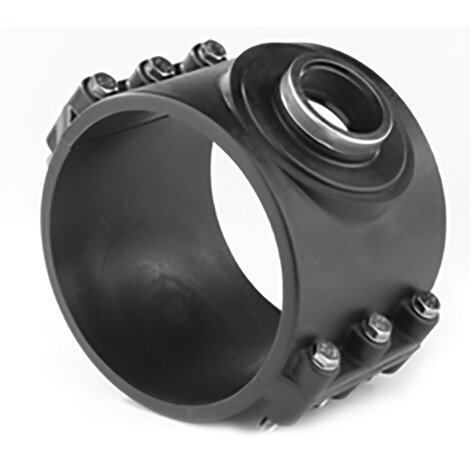

Saddle single outlet 6 bolts

BSP reinforced clamp saddle.

Go back Data sheet

Reference	tooltipImage	Box units	measurement	A	B	diamPipe	thread
053112	-	2	200-1 1/4"	254	170	200	1 1/4”
053113	-	2	200-1 1/2"	254	170	200	1 1/2”
053114	-	2	200-2"	254	170	200	2”
053115	-	2	200-3"	263	170	200	3”
053116	-	2	200-4"	272	170	200	4”
053117	-	2	225-1 1/4"	254	172	225	1 1/4”
053118	-	2	225-1 1/2"	254	172	225	1 1/2”
053119	-	2	225-2"	254	172	225	2”
053120	-	2	225-3"	263	172	225	3”
053121	-	2	225-4"	272	172	225	4”
053122	-	2	250-1 1/4"	254	175	250	1 1/4”
053123	-	2	250-1 1/2"	254	175	250	1 1/2”
053124	-	2	250-2"	254	175	250	2”
053125	-	2	250-3"	263	175	250	3”
053126	-	2	250-4"	272	175	250	4”
053127	-	2	315-1 1/4"	254	190	315	1 1/4”
053128	-	2	315-1 1/2"	254	190	315	1 1/2”
053129	-	2	315-2"	254	190	315	2”
053130	-	2	315-3"	263	190	315	3”
053131	-	2	315-4"	272	190	315	4”
