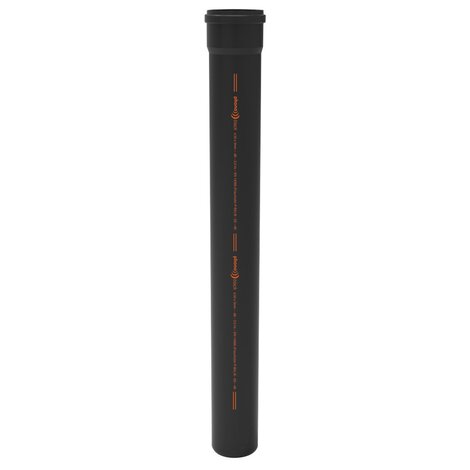

Single socket pipe M/F

PHONOBLACK Soundproof PVC-U Soil & Waste System

Push-Fit PVC-U Pipe and Fittings
13 dB - 2 l/s Acoustic Performance
B s1 d0 Fire Reaction Euroclass

Thermoplastic mineral-reinforced material PVC-U
Ring jointed sockets fitted with certified elastomeric liprings
Color: RAL 9005 - Black

Go back Data sheet

Reference	tooltipImage	Colour	S (mm)	L (mt)	DN (mm)
V0504P8	-	Black	3,0	0,5	40
V0104P8	-	Black	3,0	1,00	40
V0204P8	-	Black	3,0	2,00	40
V0304P8	-	Black	3,0	3,00	40
V0405P8	-	Black	3,0	0,25	50
V0505P8	-	Black	3,0	0,5	50
V0105P8	-	Black	3,0	1,00	50
V0205P8	-	Black	3,0	2,00	50
V0305P8	-	Black	3,0	3,00	50
V0475P8	-	Black	3,0	0,25	75
V0575P8	-	Black	3,0	0,5	75
V0175P8	-	Black	3,0	1,00	75
V0275P8	-	Black	3,0	2,00	75
V0375P8	-	Black	3,0	3,00	75
V0409P8	-	Black	3,0	0,25	90
V0509P8	-	Black	3,0	0,5	90
V0109P8	-	Black	3,0	1,00	90
V0209P8	-	Black	3,0	2,00	90
V0309P8	-	Black	3,0	3,00	90
V0410P8	-	Black	3,0	0,25	100
V0510P8	-	Black	3,0	0,5	100
V0110P8	-	Black	3,0	1,00	100
V0210P8	-	Black	3,0	2,00	100
V0310P8	-	Black	3,0	3,00	100
V0411P8	-	Black	3,2	0,25	110
V0511P8	-	Black	3,2	0,5	110
V0111P8	-	Black	3,2	1,00	110
V0211P8	-	Black	3,2	2,00	110
V0311P8	-	Black	3,2	3,00	110
V0412P8	-	Black	3,2	0,25	-
V0512P8	-	Black	3,2	0,5	-
V0112P8	-	Black	3,2	1,00	-
V0212P8	-	Black	3,2	2,00	-
V0312P8	-	Black	3,2	3,00	-
V0516P8	-	Black	4,0	0,5	-
V0116P8	-	Black	4,0	1,00	-
V0216P8	-	Black	4,0	2,00	-
V0316P8	-	Black	4,0	3,00	-
