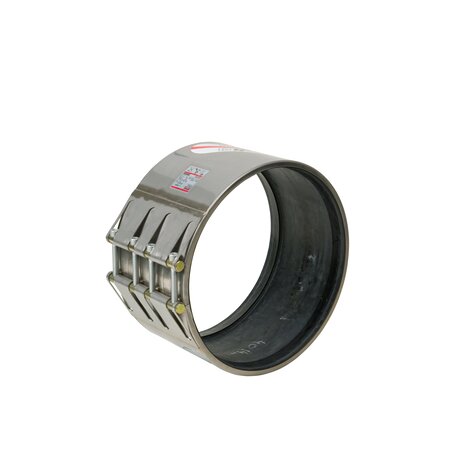

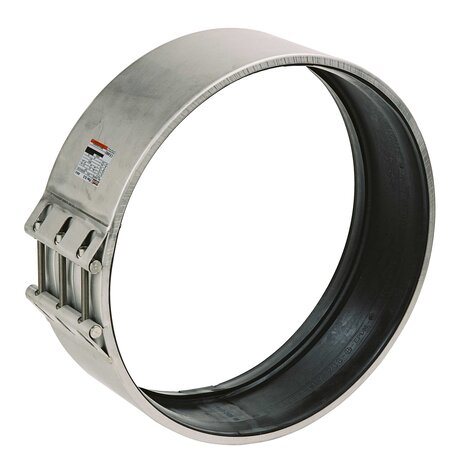

Non-axial restraint pipe coupling

STRAUB-FLEX-3.5

All pipe materials can be reliably connected with STRAUB-FLEX couplings. STRAUB-FLEX pipe couplings enable pipe connections for practically all conceivable pipe diameters, for the same or different types of pipe materials, various media and temperatures as well as for a wide range of the operating pressure values. The sealing sleeve separates the coupling casing from the pipe surface so that sound, vibrations and oscillations are optimally damped.
Go back Data sheet
STRAUB-FLEX-3.5
STRAUB-FLEX-3.5
STRAUB-FLEX-3.5
STRAUB-FLEX-3.5
STRAUB-FLEX-3.5
STRAUB-FLEX-3.5
STRAUB-FLEX-3.5
STRAUB-FLEX-3.5

FLEX 3.5 ΓΈ 323.9 - 1219.2 mm

adMm Clamping range [mm] PN Industry [bar] 25 PN Industry [bar] 6 PN Industry [bar] 10 PN Industry [bar] 16 PN Industry [bar] 20 PN Industry [bar] 2.5
323.9 320 - 327 W1 | W5 W1 | W5 W1 | W5 W1 | W5 W1 | W5 W1 | W5
355.6 352 - 359 W1 | W5 W1 | W5 W1 | W5 W1 | W5 W1 | W5 W1 | W5
406.4 402 - 410 W1 | W5 W1 | W5 W1 | W5 W1 | W5 W1 | W5 W1 | W5
457.2 453 - 461 W1 | W5 W1 | W5 W1 | W5 W1 | W5 W1 | W5 W1 | W5
508 504 - 512 W1 | W5 W1 | W5 W1 | W5 W1 | W5 W1 | W5 W1 | W5
558.8 555 - 563 W1 | W5 W1 | W5 W1 | W5 W1 | W5 W1 | W5 W5*
609.6 605 - 614 W1 | W5 W1 | W5 W1 | W5 W1 | W5 W1 | W5 W5*
655 651 - 659 W1 | W5 W1 | W5 W1 | W5 W1 | W5 W5* W5*
711.2 707 - 715 W1 | W5 W1 | W5 W1 | W5 W1 | W5 W5* W5*
762 758 - 766 W1 | W5 W1 | W5 W1 | W5 W1 | W5 W5* W5*
812.8 809 - 817 W1 | W5 W1 | W5 W1 | W5 W1 | W5 W5* W5*
914.4 910 - 918 W1 | W5 W1 | W5 W1 | W5 W5* W5* W5*
1016 1011 - 1021 W1 | W5 W1 | W5 W1 | W5 W5* W5* -
1117.6 1112 - 1123 W1 | W5 W1 | W5 W1 | W5 W5* W5* -
1219.2 1214 - 1224 W1 | W5 W1 | W5 W1 | W5 W5* - -
Remarks:
- Follow fitting instructions
- PN = working pressure considering the application loads
- Test pressure = PN x 1.5 (for example industry, water supply etc.)
- Burst pressure = approx. PN x 2
- Strip inserts included
- Additional sealing sleeves, pressure and temperature ranges on request

* These products are only available on request

STRAUB pipe couplings are made of the same or different materials depending on the diameter and size. The following overview shows the details. If you have any questions, please contact our application technology department.

FLEX 3.5 ΓΈ 323.9 - 1219.2 mm

Components W1 W2 W5
S355MC, hot-dip galvanised - S32101 (LDX)
AISI 4135 - A4 - 80
AISI 12L14, galvanised - AISI 316 L or similar
AISI 316 L or similar / HDPE - AISI 316 L or similar / HDPE
Sealing sleeve Temperatur Medium
