TBE SDR33 - 90° Tee
90° Tee, short spigot for butt welding SDR 33 - S16.
Series of short and long fittings designed for conveying fluids under pressure for butt welding and electrofusion applications.

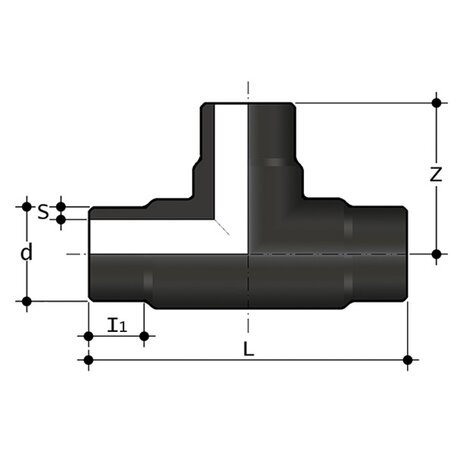

| Reference | tooltipImage | Other description | system | Category | family | series | d | L | Z | l1 | S | g |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| TBE33110 | - | * resale products | PE Pipe and Fittings | Pressure Fittings | ISO-UNI Fittings | Short-spigot-for-butt-welding | *110 | 215 | 105 | 30 | 3 | 664 |
| TBE33125 | - | * resale products | PE Pipe and Fittings | Pressure Fittings | ISO-UNI Fittings | Short-spigot-for-butt-welding | *125 | 218 | 107 | 35 | 4 | 530 |
| TBE33140 | - | * resale products | PE Pipe and Fittings | Pressure Fittings | ISO-UNI Fittings | Short-spigot-for-butt-welding | *140 | 253 | 125 | 20 | 4 | 1080 |
| TBE33160 | - | * resale products | PE Pipe and Fittings | Pressure Fittings | ISO-UNI Fittings | Short-spigot-for-butt-welding | *160 | 270 | 140 | 40 | 5 | 1731 |
| TBE33180 | - | * resale products | PE Pipe and Fittings | Pressure Fittings | ISO-UNI Fittings | Short-spigot-for-butt-welding | *180 | 310 | 150 | 45 | 6 | 2360 |
| TBE33200 | - | * resale products | PE Pipe and Fittings | Pressure Fittings | ISO-UNI Fittings | Short-spigot-for-butt-welding | *200 | 340 | 170 | 45 | 6 | 3140 |
| TBE33225 | - | * resale products | PE Pipe and Fittings | Pressure Fittings | ISO-UNI Fittings | Short-spigot-for-butt-welding | *225 | 440 | 220 | 48 | 7 | 4340 |
| TBE33250 | - | * resale products | PE Pipe and Fittings | Pressure Fittings | ISO-UNI Fittings | Short-spigot-for-butt-welding | *250 | 438 | 215 | 52 | 8 | 7100 |
| TBE33280 | - | * resale products | PE Pipe and Fittings | Pressure Fittings | ISO-UNI Fittings | Short-spigot-for-butt-welding | *280 | 500 | 243 | 65 | 9 | 8450 |
| TBE33315 | - | * resale products | PE Pipe and Fittings | Pressure Fittings | ISO-UNI Fittings | Short-spigot-for-butt-welding | *315 | 535 | 270 | 77 | 10 | 10980 |
| TBE33355 | - | * resale products | PE Pipe and Fittings | Pressure Fittings | ISO-UNI Fittings | Short-spigot-for-butt-welding | *355 | 674 | 347 | 96 | 11 | 16980 |
| TBE33400 | - | * resale products | PE Pipe and Fittings | Pressure Fittings | ISO-UNI Fittings | Short-spigot-for-butt-welding | *400 | 680 | 340 | 90 | 12 | 23400 |
| TBE33450 | - | * resale products | PE Pipe and Fittings | Pressure Fittings | ISO-UNI Fittings | Short-spigot-for-butt-welding | *450 | 890 | 450 | 130 | 14 | 33000 |
| TBE33500 | - | * resale products | PE Pipe and Fittings | Pressure Fittings | ISO-UNI Fittings | Short-spigot-for-butt-welding | *500 | 895 | 450 | 130 | 15 | 33500 |
* resale products
- Size range: d 12 ÷ d 800 (mm)
- Nominal pressure: SDR 17 (PN10) with water at 20 °C, SDR 11 (PN16) with water at 20 °C
- Temperature range: -40 °C ÷ 60 °C
- Coupling standards - Reference standards:
- Welding: EN ISO 15494. Can be coupled to pipes according to EN ISO 15494
- Flanging system: ISO 7005-1, EN 1092-1, EN ISO 15494, ANSI B16.5 cl.150
- Construction criteria: UNI EN ISO 15494
- Test methods and requirements: UNI EN ISO 15494
- Installation criteria: DVS 2202-1, DVS 2207-1, UNI EN 12201- 3, UNI 10520, ISO 21307,UNI 10521, UNI EN 1555-3, ISO 4427- 3, ISO 4437-3
- Fitting material: PE-HD
- Seal material: EPDM, FKM
